DIMAR MFSAN Aluminium Cutting TCT Saw Blades

Available Variants
Specification	SKU & Stock
8" · 200mm × 64T · MFSAN · DIMA0864	DIMA0864 In Stock	$675.00/ 件 Was $1,290.00-48%
10" · 250mm × 80T · MFSAN · DIMA1080	DIMA1080 In Stock	$725.00/ 件 Was $1,590.00-54%
10" · 250mm × 100T · MFSAN · DIMA1010	DIMA1010 In Stock	$775.00/ 件 Was $1,700.00-54%
12" · 300mm × 96T · MFSAN · DIMA1296	DIMA1296 In Stock	$863.00/ 件 Was $1,900.00-55%
12" · 300mm × 120T · MFSAN · DIMA1212	DIMA1212 In Stock	$894.00/ 件 Was $1,970.00-55%
14" · 350mm × 108T · MFSAN · DIMA1408	DIMA1408 In Stock	$1,016.00/ 件 Was $2,230.00-54%

Product overview

MFSAN carbide-tipped aluminium cutting blades in 8–14 inch nominal sizes, 200–350mm diameters and 64–120 teeth, with a 3.2mm nominal kerf. For aluminium profiles and plastic frames. Bore size is 25.4mm or 30mm according to the SKU.

Features and applications

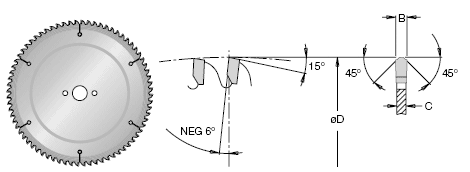

MFSAN tooth geometry for cutting aluminium profiles.
Six SKUs with different diameters, tooth counts and bores.
Match the selected bore size to the machine spindle.

Complete SKU specifications

SKU	Nominal size	Diameter (mm)	Teeth	Listed width / kerf (mm)	Bore (mm)	Tooth type
DIMA0864	8"	200	64T	3.2	25.4	MFSAN
DIMA1080	10"	250	80T	3.2	25.4	MFSAN
DIMA1010	10"	250	100T	3.2	30.0	MFSAN
DIMA1296	12"	300	96T	3.2	30.0	MFSAN
DIMA1212	12"	300	120T	3.2	30.0	MFSAN
DIMA1408	14"	350	108T	3.2	30.0	MFSAN

Selecting your blade

Select a specification to order its exact SKU. Confirm the diameter, bore, cutting width and machine compatibility before use.

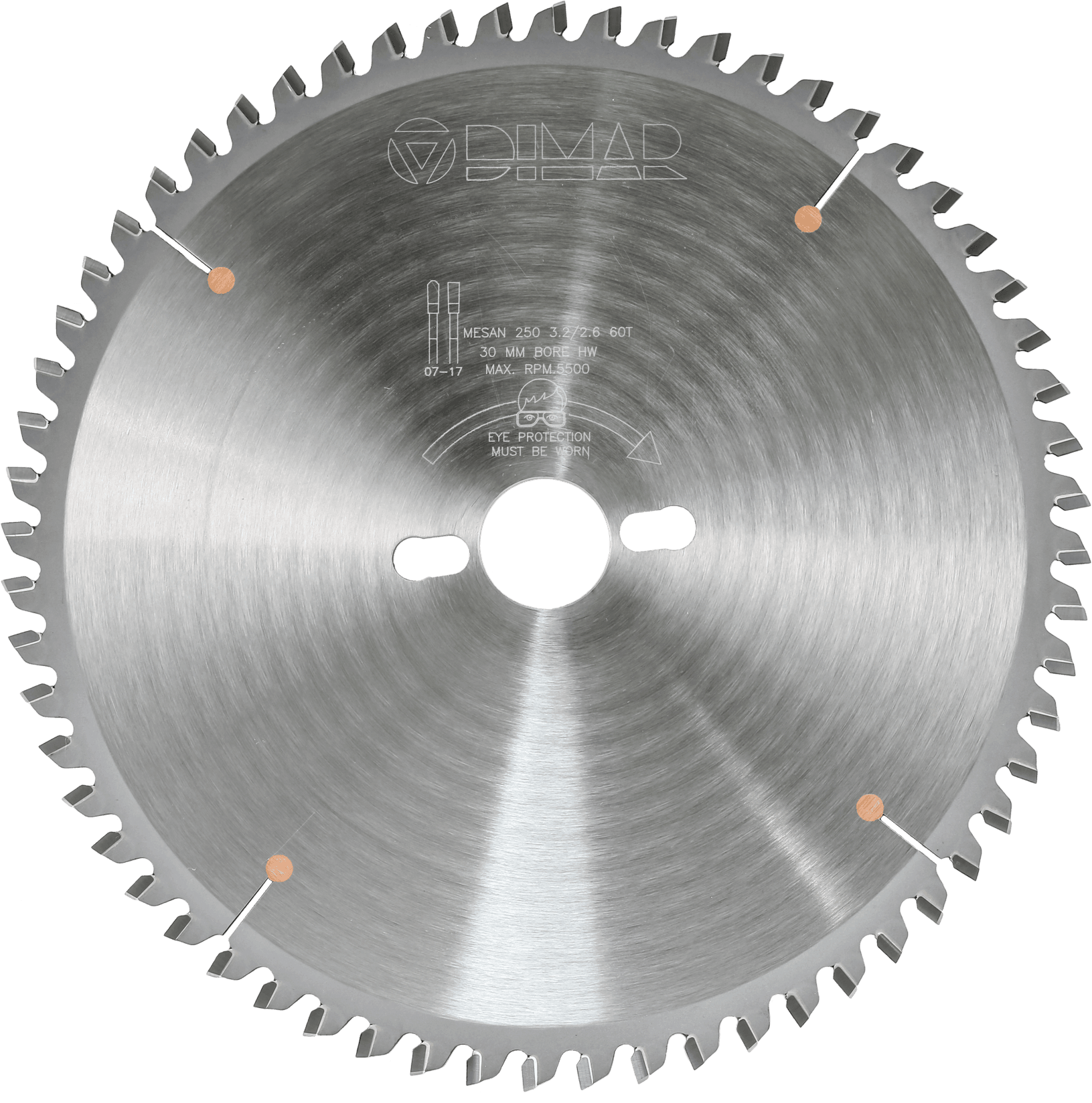

Images illustrate the blade family; the selected SKU and specification table define the supplied blade.

No downloads available yet

Contact the supplier if you need a datasheet, certificate, or another technical document.

Material

Blade Material: Carbide Tipped
