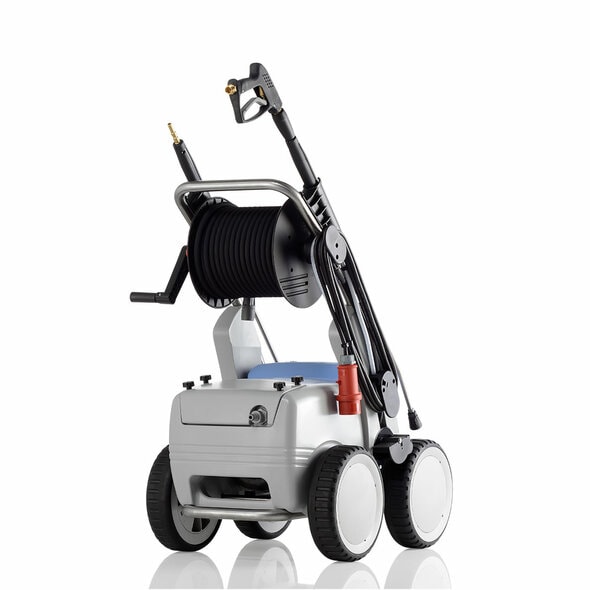

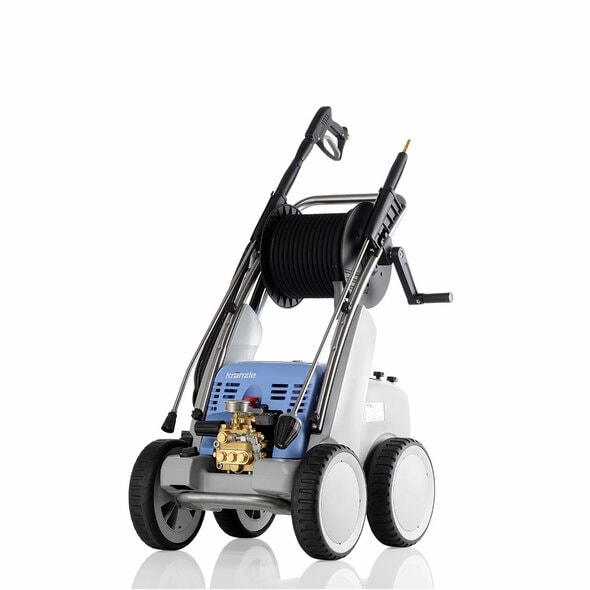

A professional machine from the large quadro series with a working pressure of up to 250 bar for powerful performance even in continuous use. The Kränzle-developed high-pressure pump is mounted horizontally and the robust stainless-steel chassis ensures high stability. The four-wheel chassis is easily adjusted to the optimum working position; an integrated hose reel, impact protection and an integrated water tank are fitted, and the machine runs on a 400 V three-phase supply.
| Order no. | 612060 |
|---|---|
| Operating pressure | 30-250 bar (3-25 MPa) |
| Water output | 800 l/h (13.3 l/min) |
| Admissible overpressure | 270 bar (27 MPa) |
| Motor speed | 1400 rpm |
| Connection voltage | 400 V |
| Connection phase | 3 ~ |
| Connection frequency | 50 Hz |
| Connection amperage | 12 A |
| Power intake | 7.5 kW |
| Power output | 5.5 kW |
| Power cable length | 7.5 m |
| Water tank | 12 litres |
| Dimensions (L x W x H) | 770 x 570 x 990 mm |
| Weight | 89 kg |
