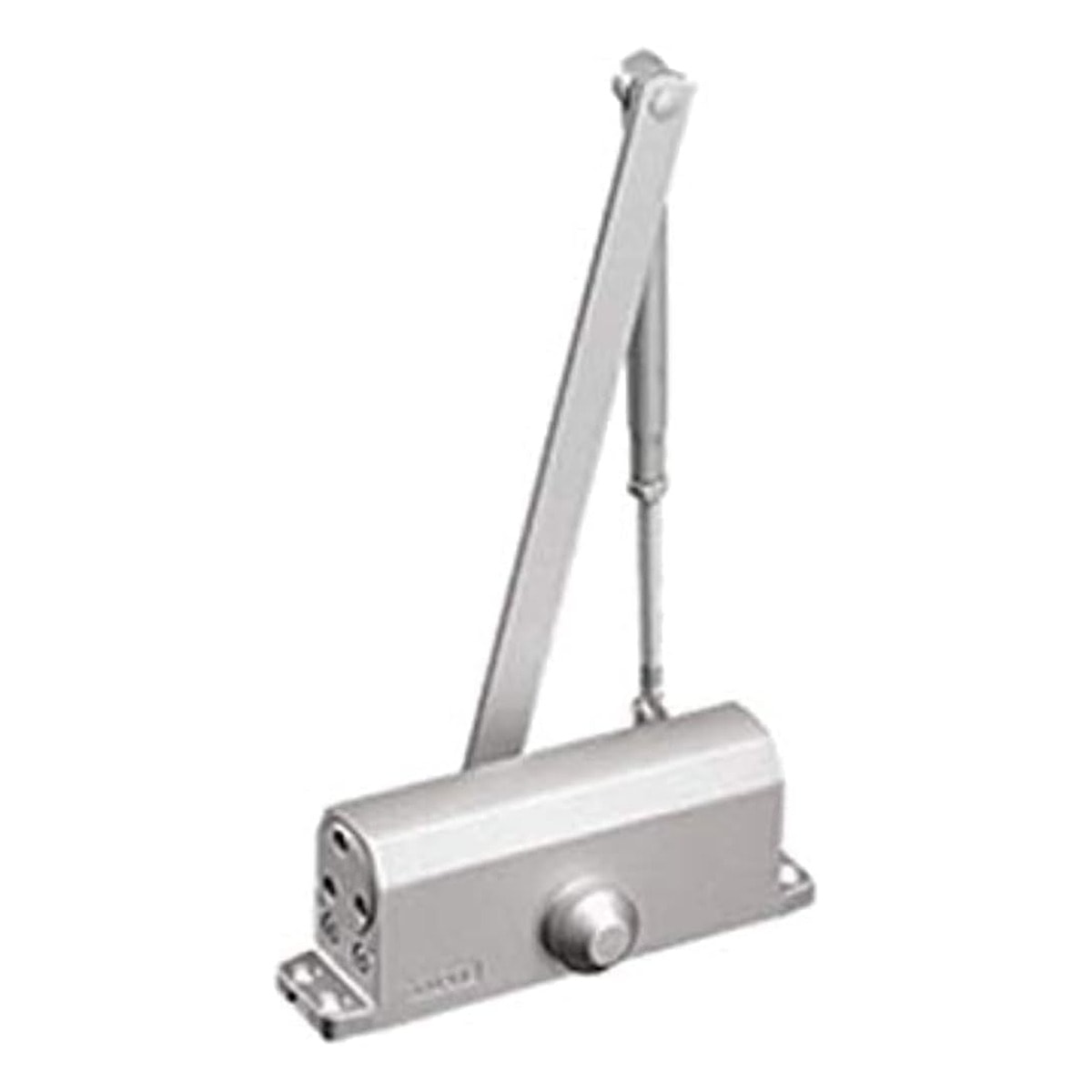

FPSFlexible PaymentBank TransferThe RYOBI 9903F is a surface-mounted overhead door closer from Japanese manufacturer RYOBI. It is a size 3 closer from the RYOBI 9903 series, rated for single-swing doors up to 65 kg and up to 965 mm wide. Full hydraulic 2-speed control adjusts the closing speed and the latching speed separately, so the door returns smoothly and latches gently, without slamming. The high-strength die-cast aluminium body is tested to 500,000 cycles and fits both left- and right-hand doors. It suits interior timber, aluminium and metal doors in homes, offices, shops and corridors.

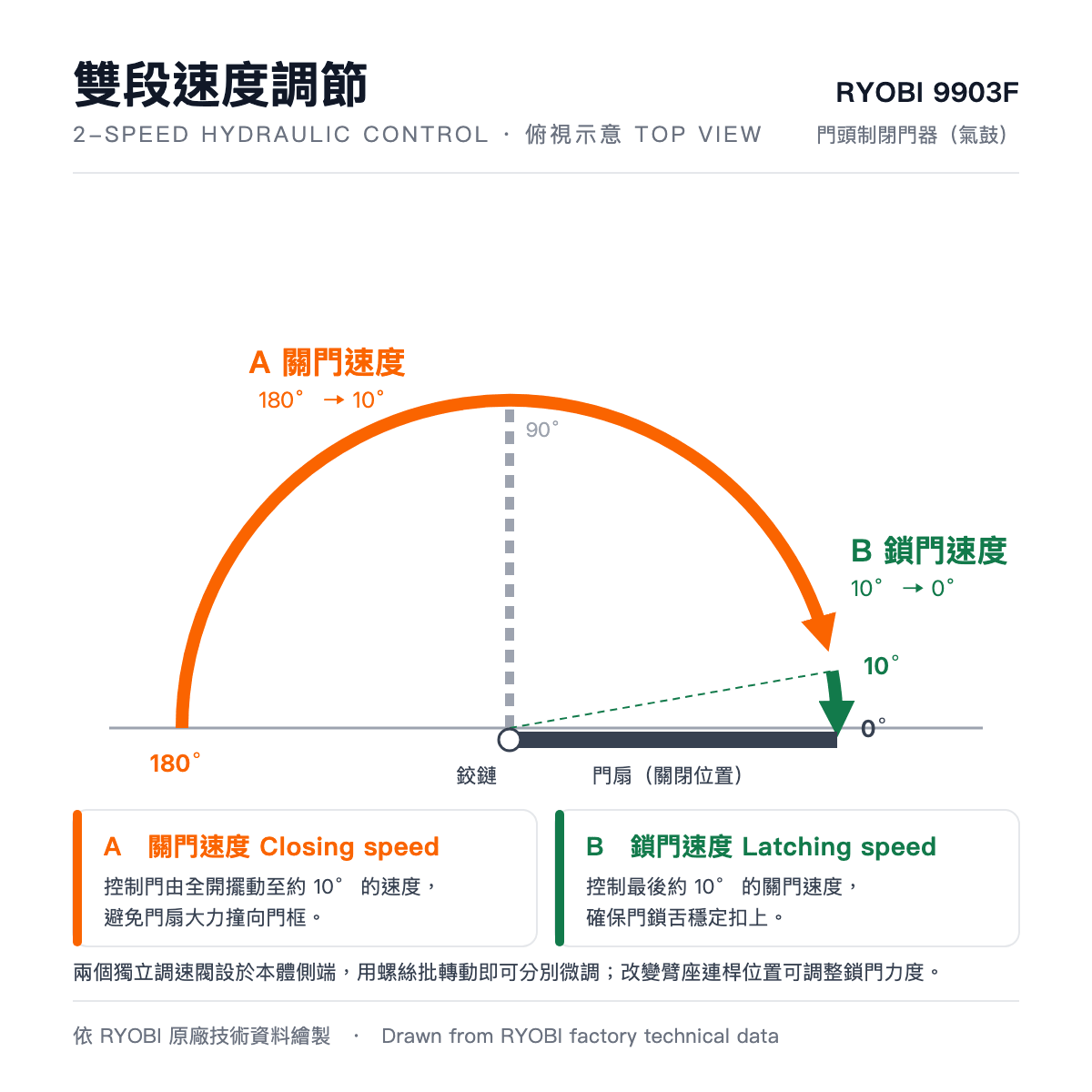

The closer hydraulically controls the whole opening and closing cycle. The closing-speed valve governs the swing from fully open to about 10°, and the latching-speed valve governs the final 10° so the latch engages without slamming. Each valve is adjusted independently with a screwdriver.

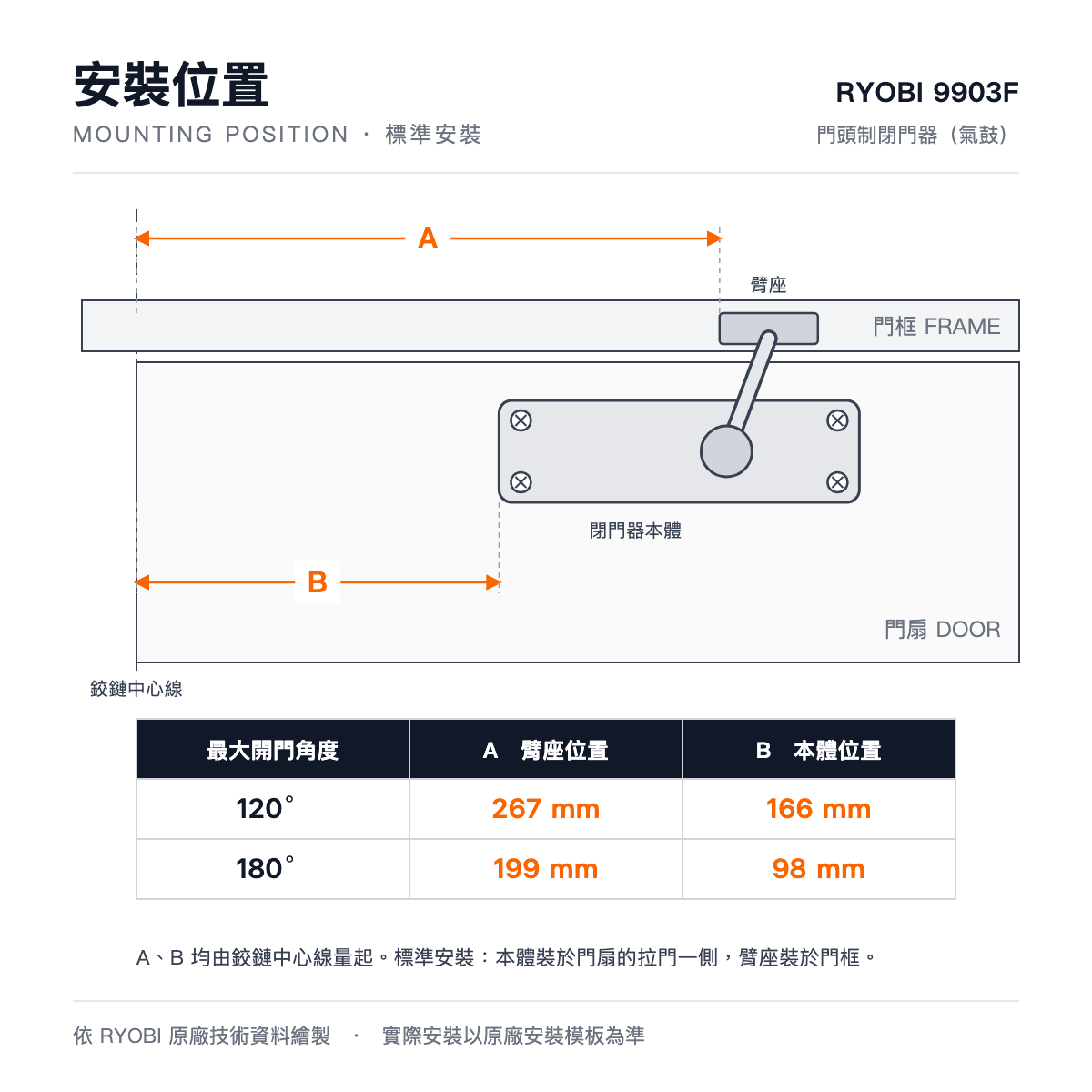

The closer body mounts on the pull side of the door and the arm shoe on the frame. Position it for the required maximum opening: for 120°, the arm shoe sits 267 mm and the body 166 mm from the hinge centre line; for 180°, 199 mm and 98 mm. Always follow the factory mounting template.

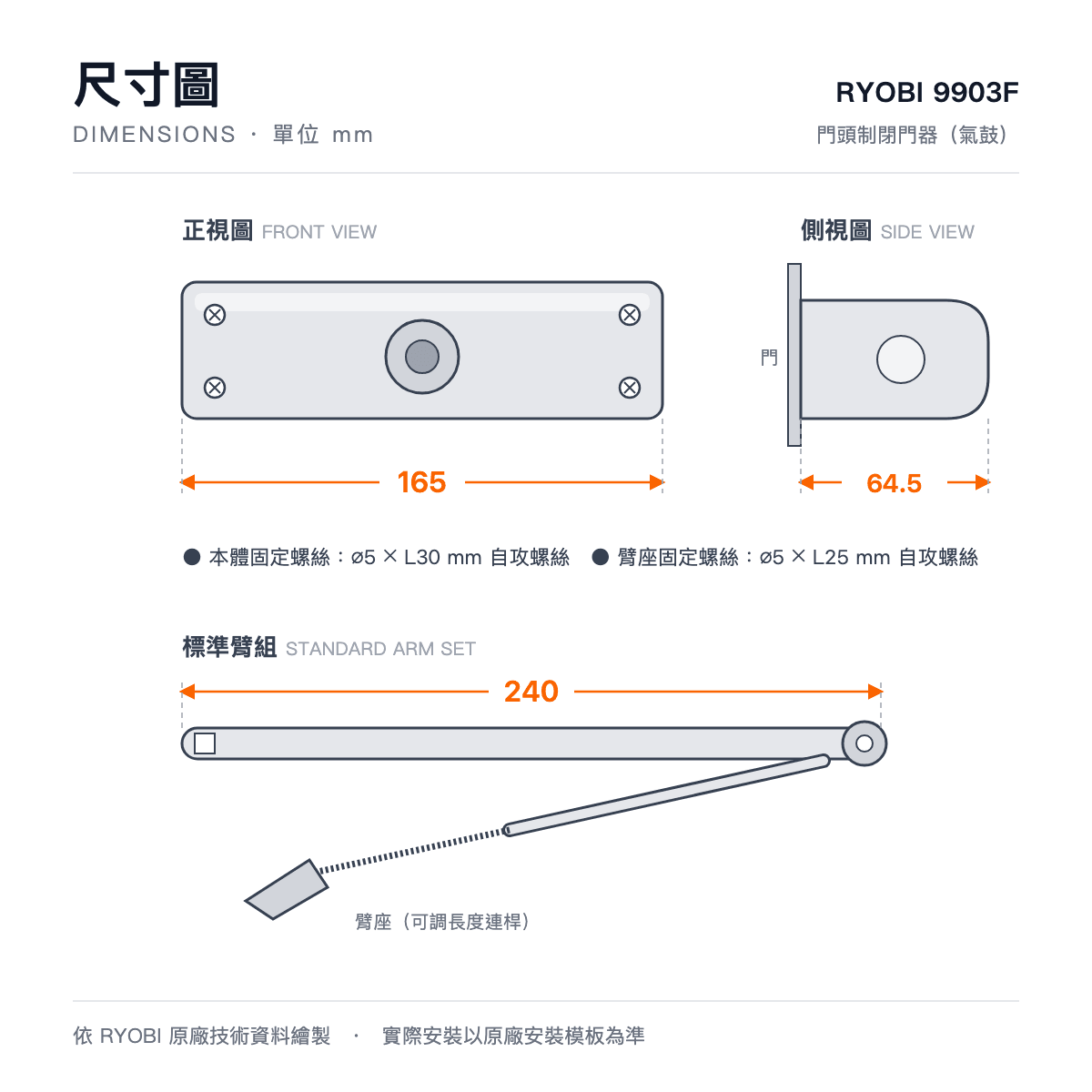

The body measures 165 mm long and 64.5 mm deep, paired with a 240 mm standard arm set. It is made from high-strength die-cast aluminium with a precision-machined rack-and-pinion mechanism, and is tested to 500,000 cycles. It is non-handed, so one model fits left- and right-hand doors.
Before ordering, check that the door weighs no more than 65 kg and is no wider than 965 mm. Heavier or wider doors need a larger closer size. If the door must stay open, choose a model with a hold-open function.

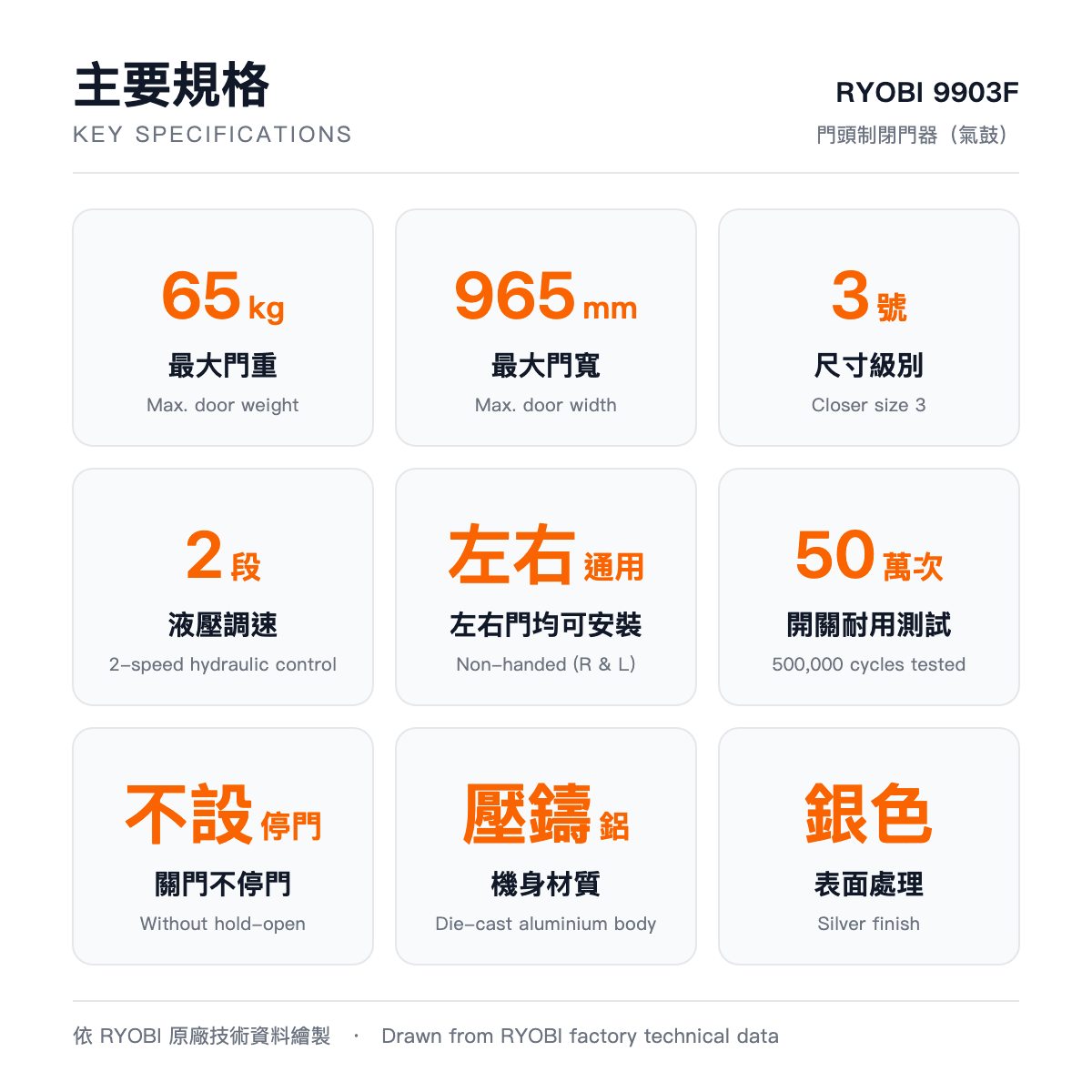

| Model | 9903F (RYOBI 9903 series) |
|---|---|
| Brand | RYOBI (Japan) |
| Type | Surface-mounted overhead door closer |
| Application | Standard (regular arm): body on the pull side of the door, arm shoe on the frame |
| Closer size | Size 3 |
| Max. door weight | 65 kg |
| Max. door width | 965 mm |
| Speed control | Full hydraulic, 2 independent valves: closing speed 180°–10°; latching speed 10°–0° |
| Latching power adjustment | Yes (by repositioning the frame arm in the foot bracket) |
| Hold-open | No |
| Handing | Non-handed (left and right) |
| Durability | 500,000 opening/closing cycles |
| Body material | High-strength die-cast aluminium |
| Colour | Silver |
| Body dimensions | 165 mm (L) × 64.5 mm (D) |
| Standard arm length | 240 mm |
| Fixing screws | Body ø5 × 30 mm; arm shoe ø5 × 25 mm tapping screws |
