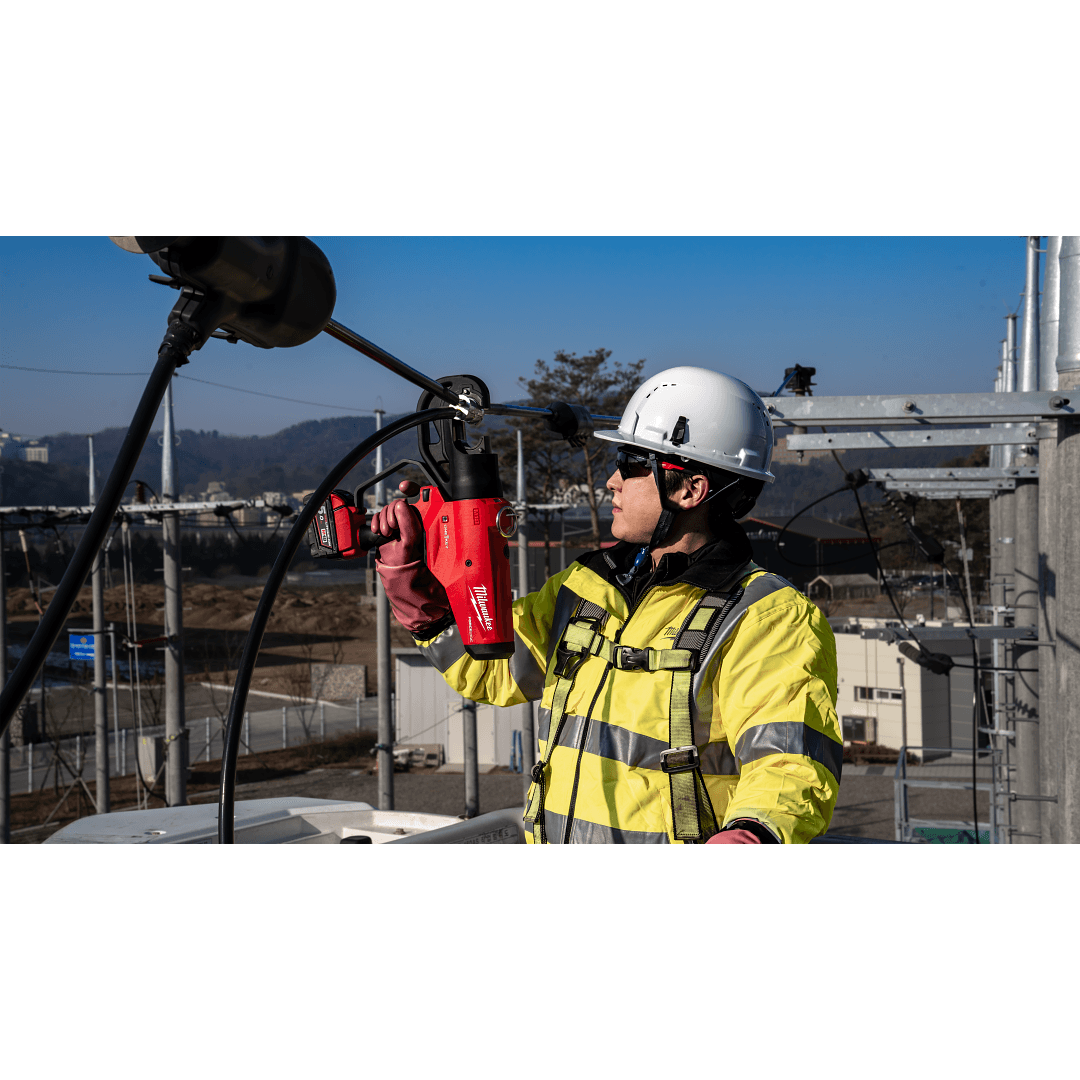

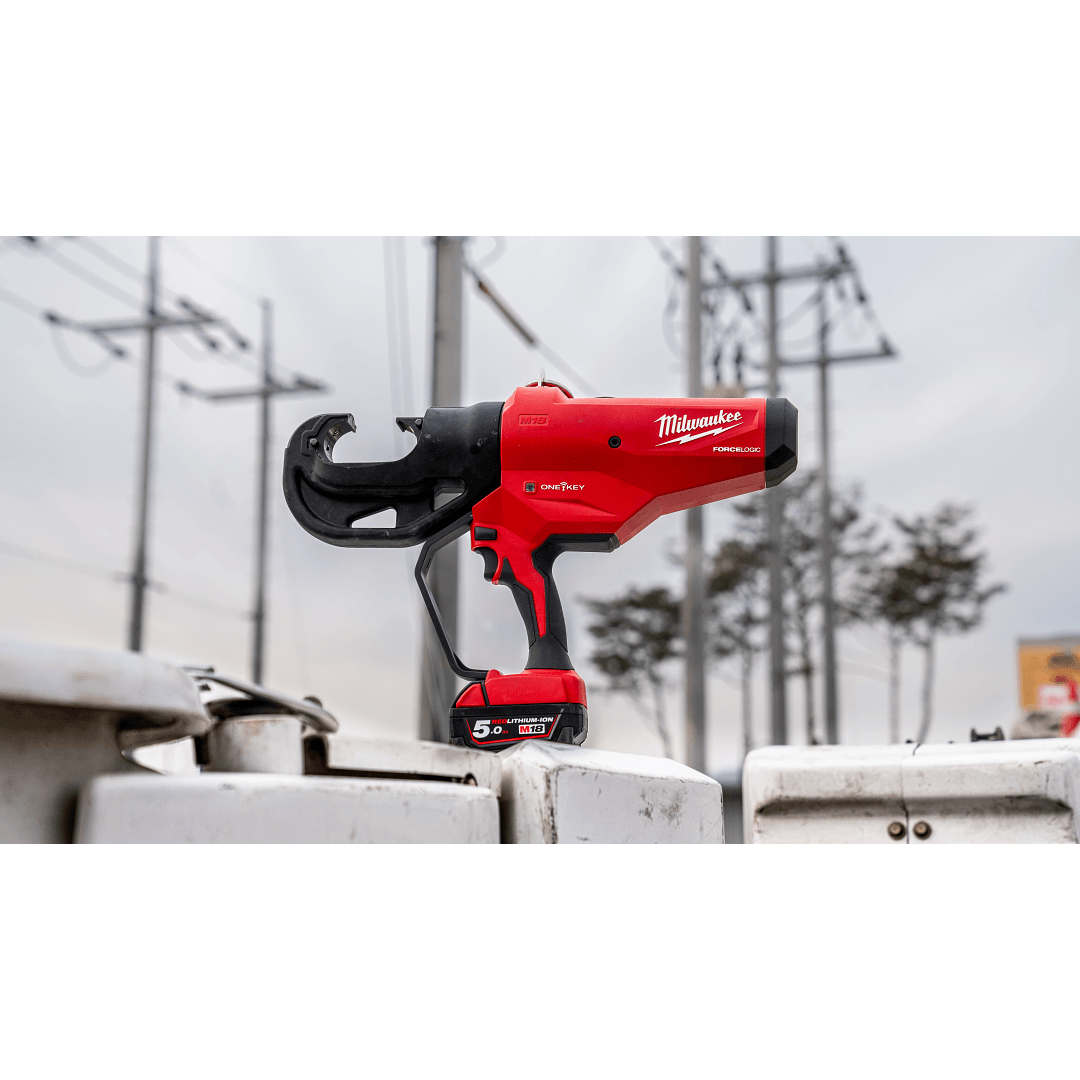

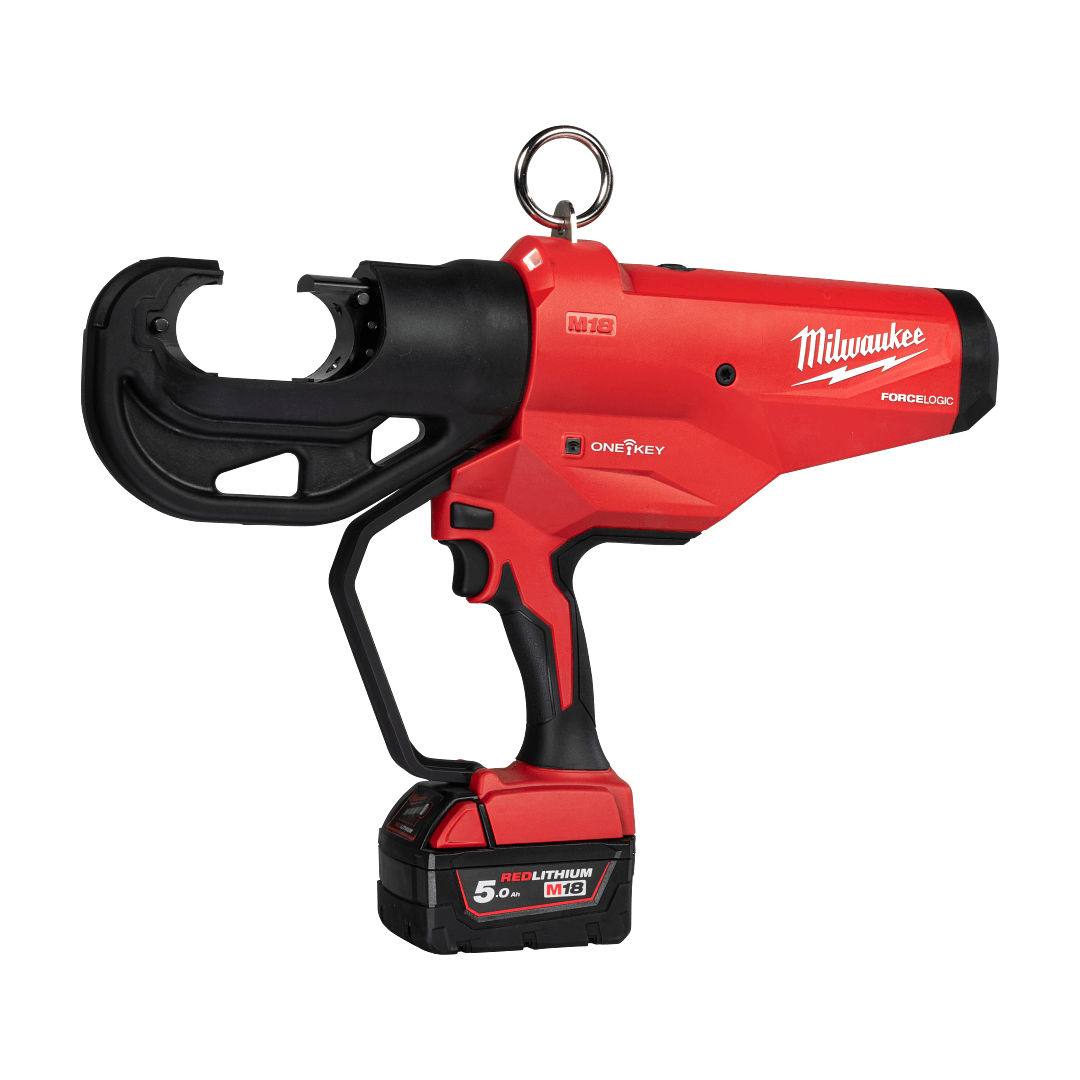

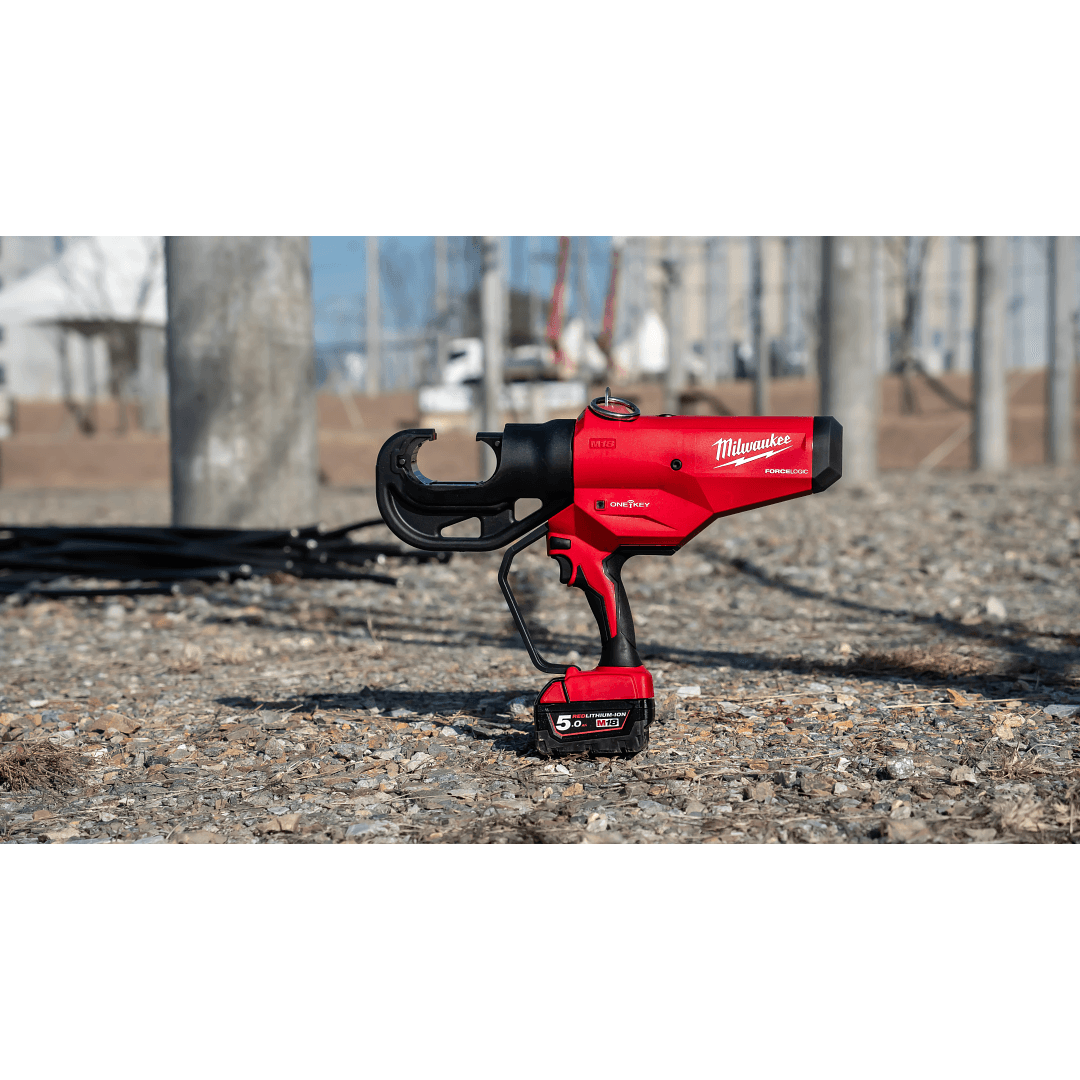

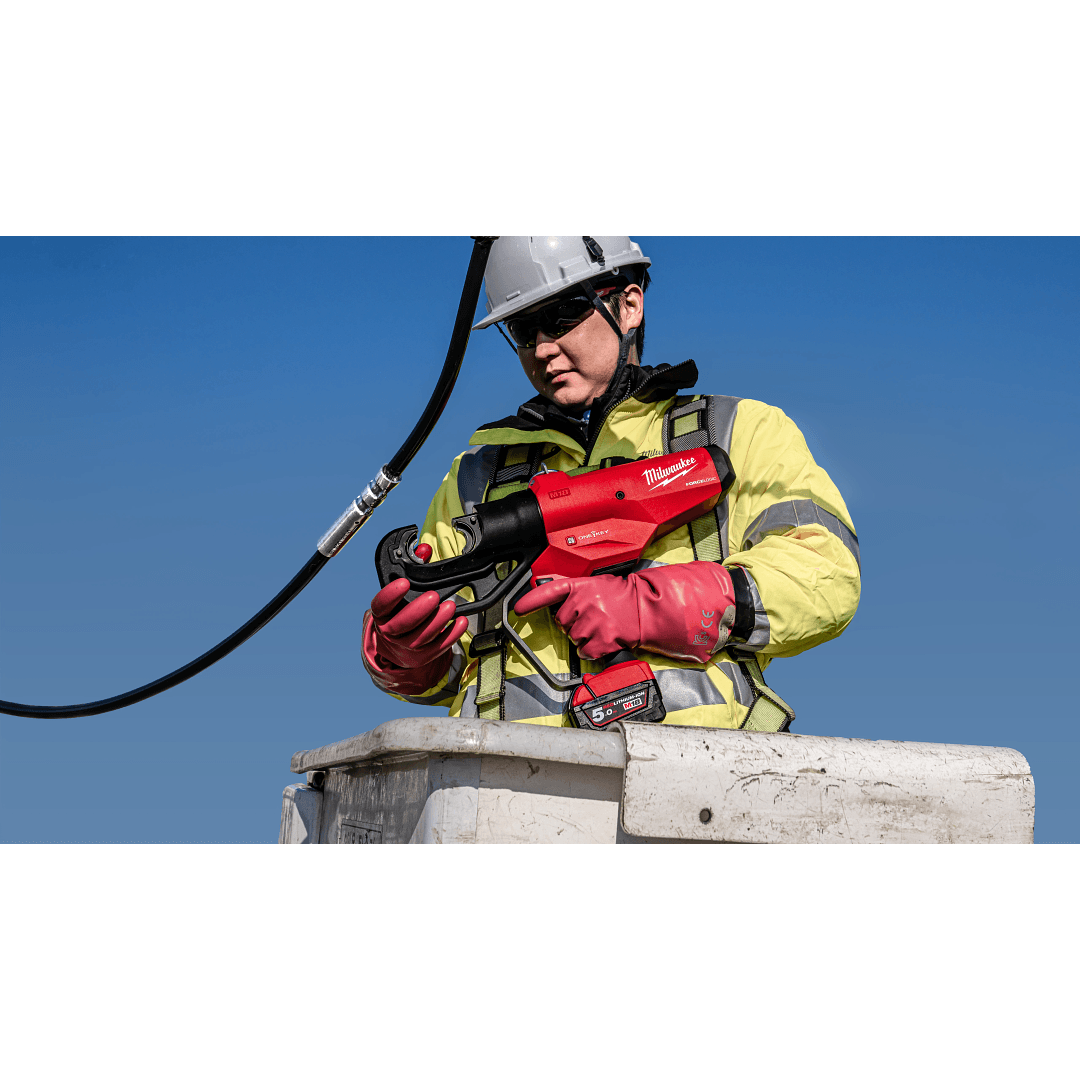

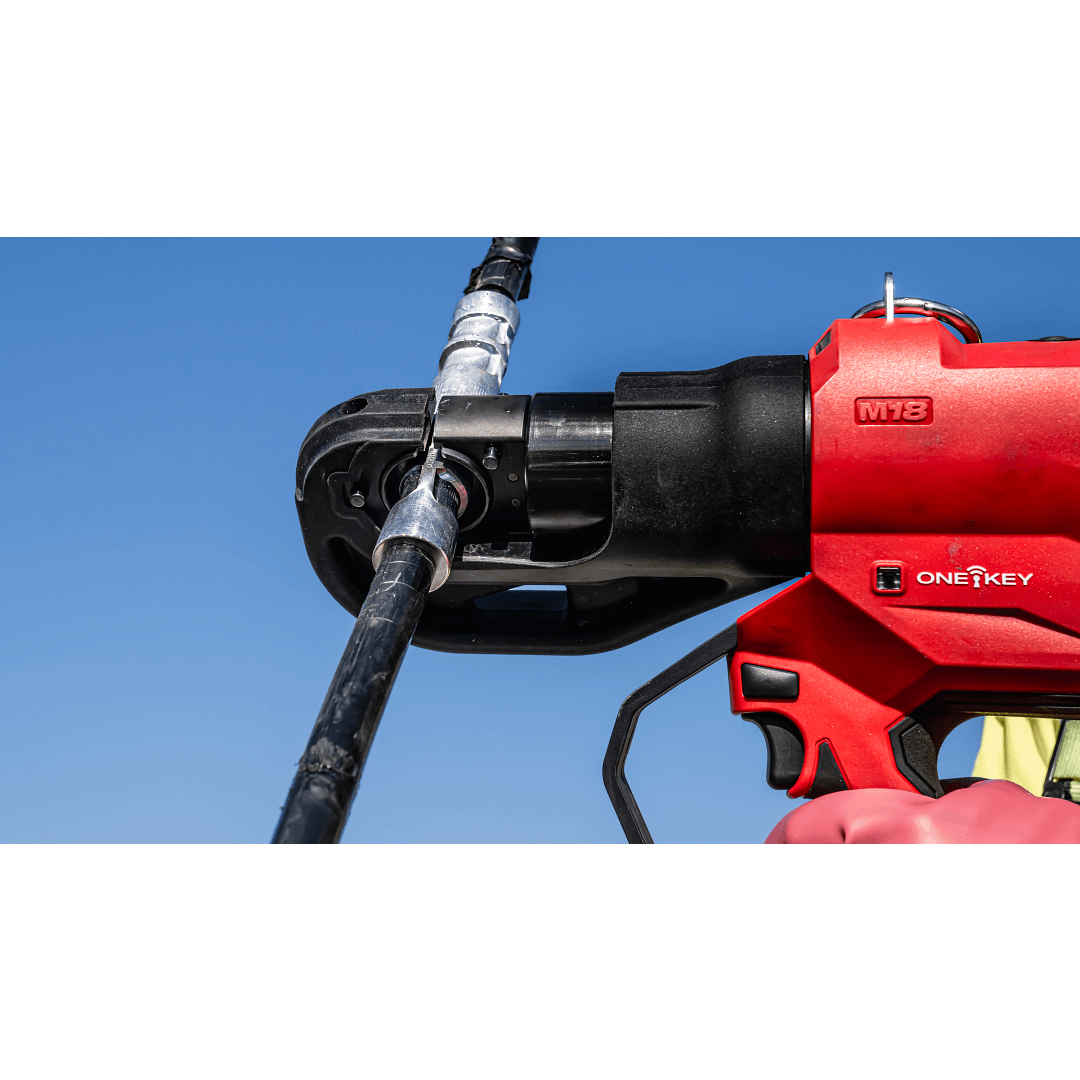

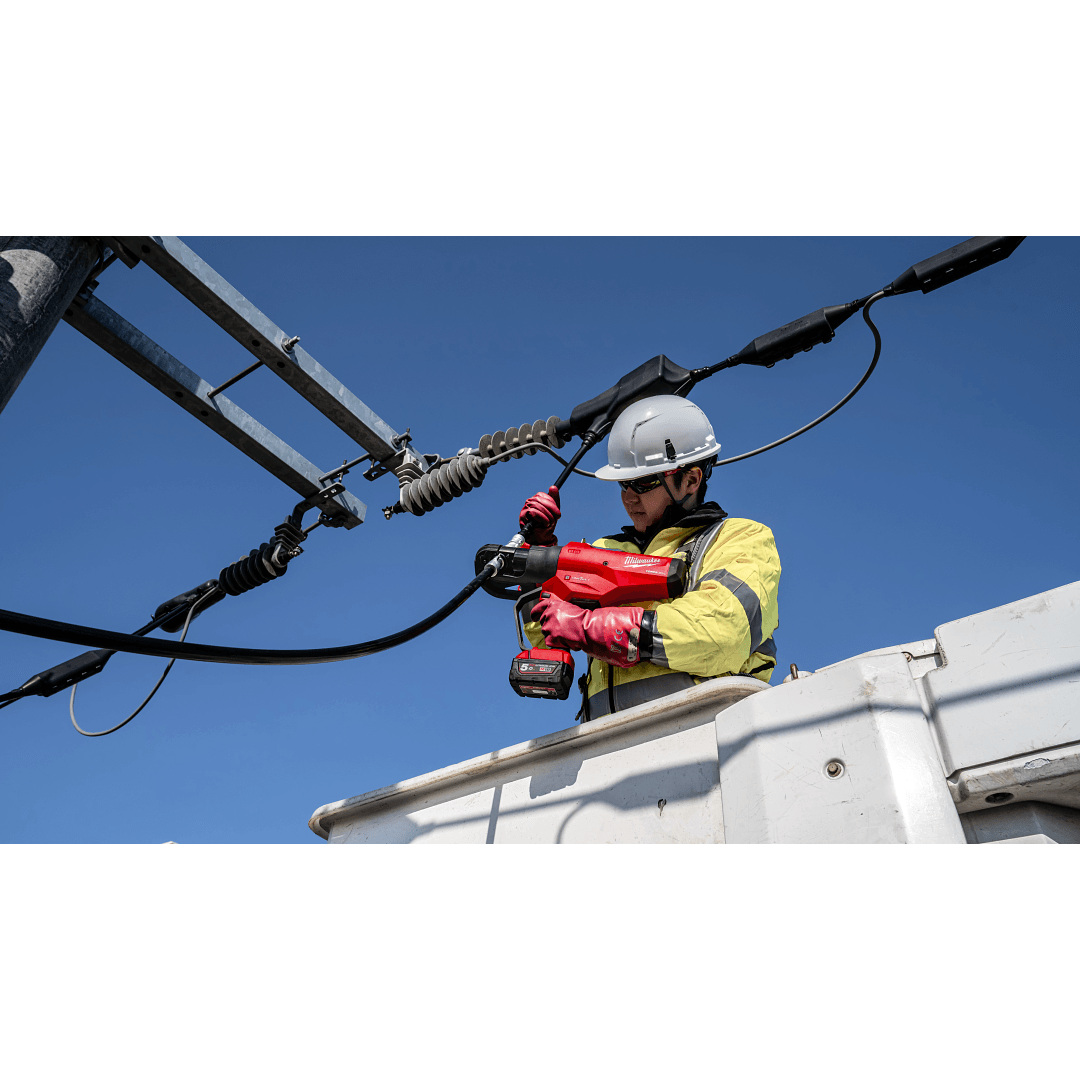

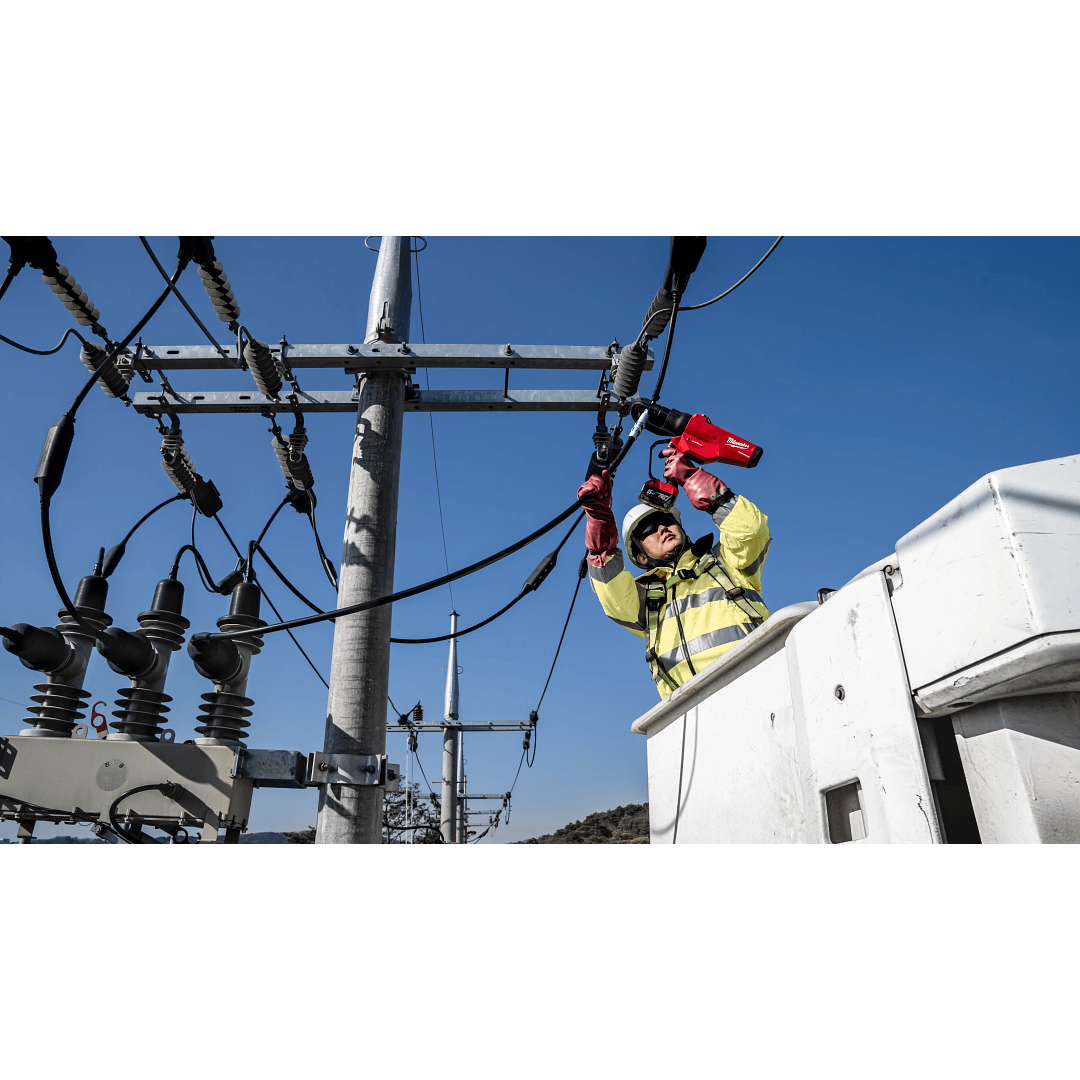

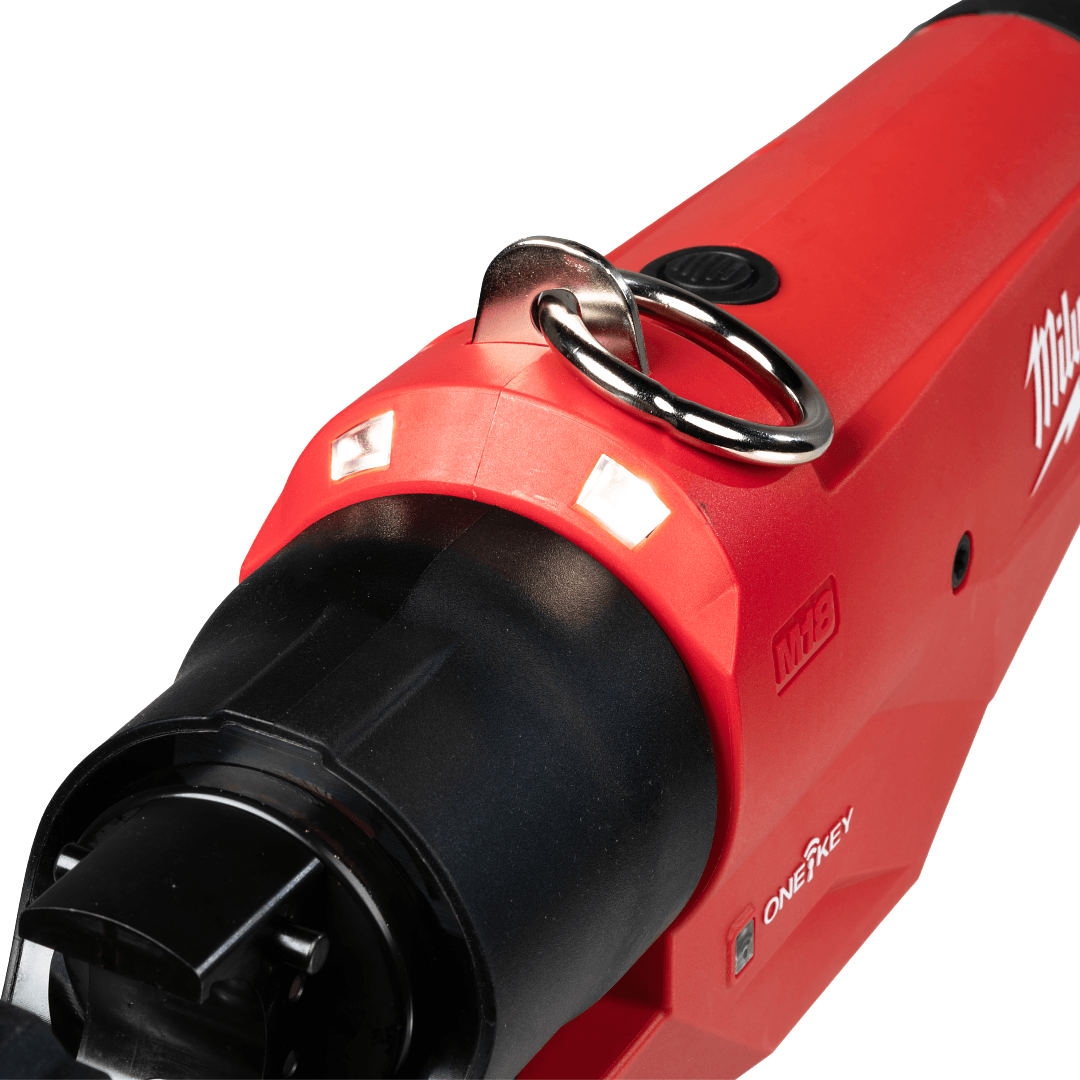

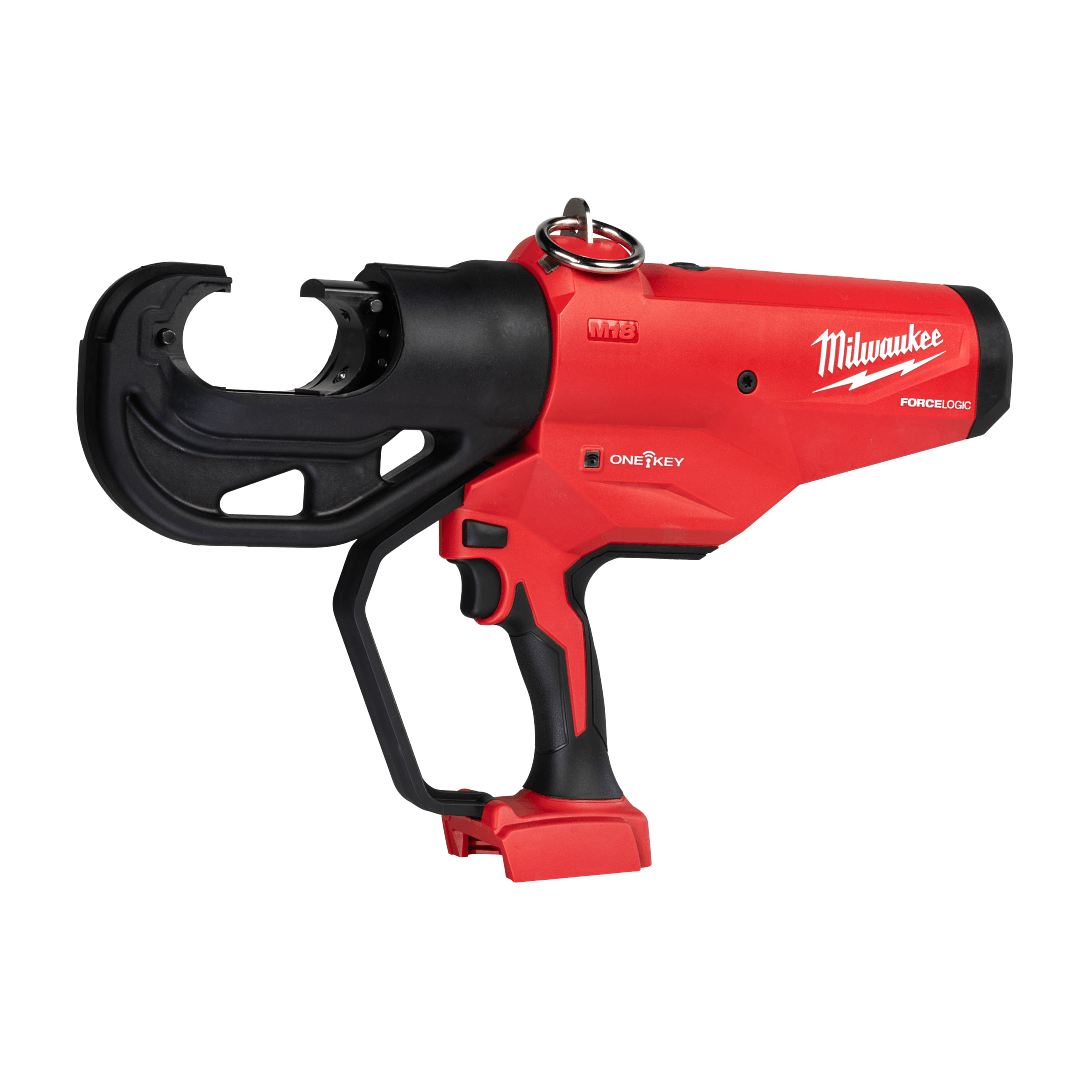

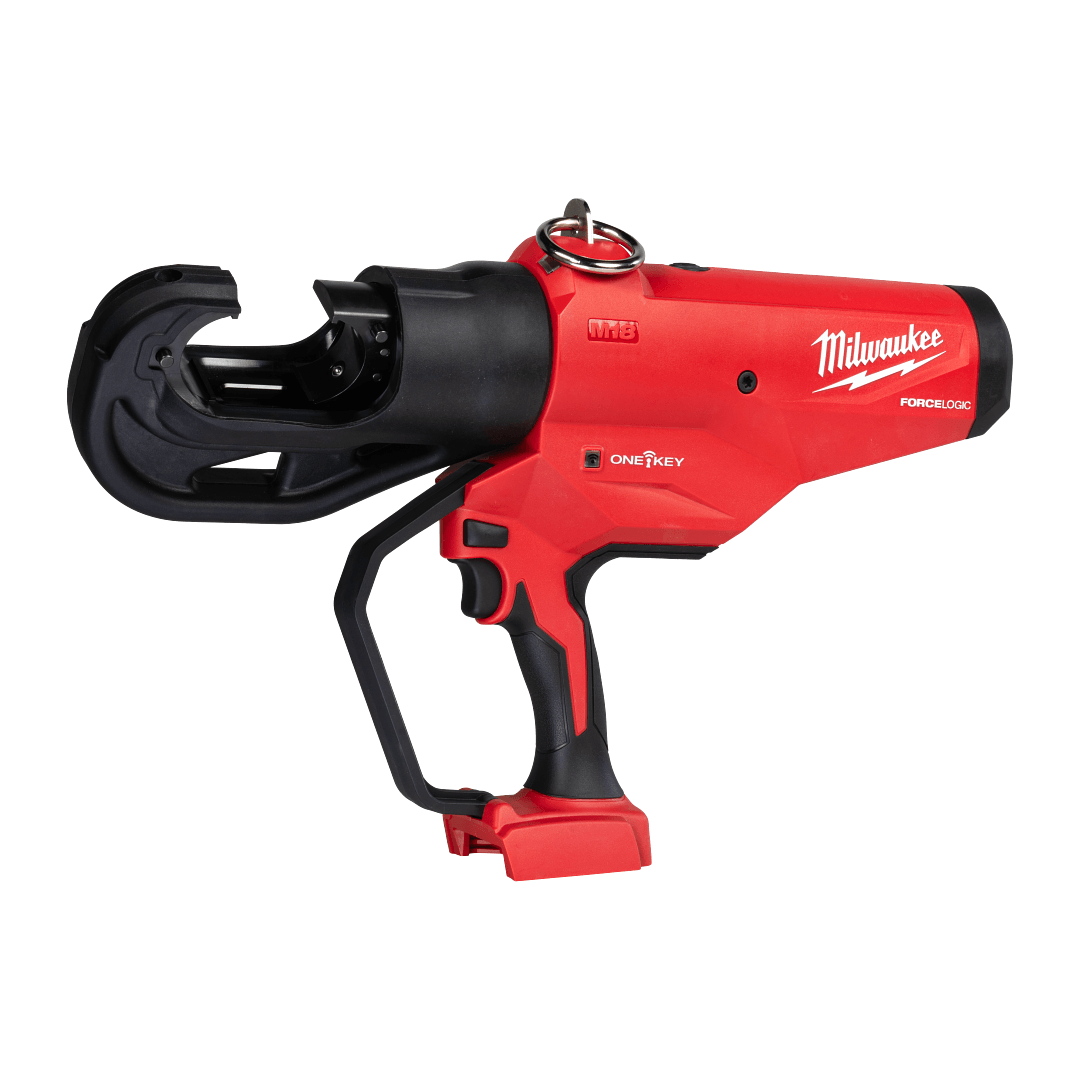

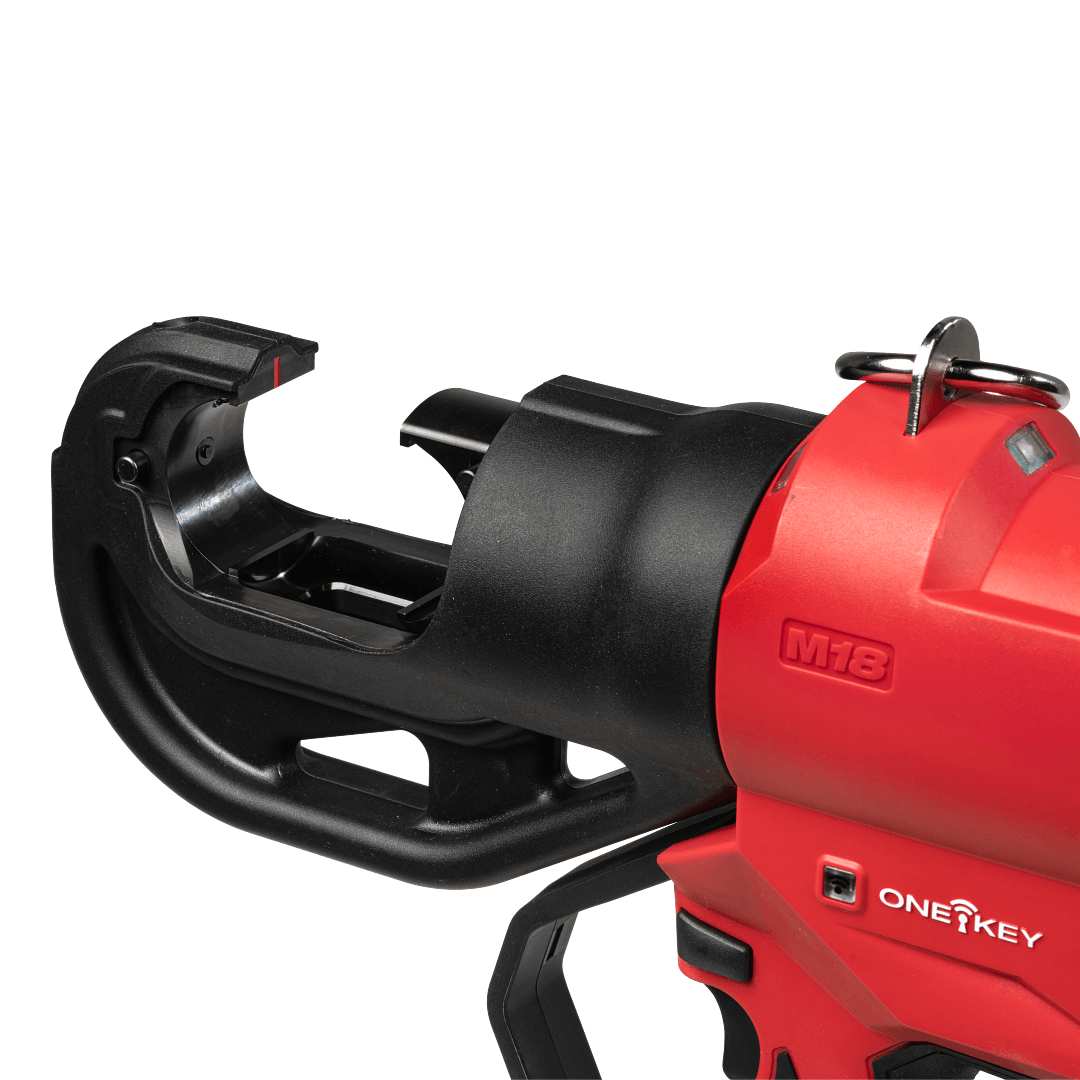

The Milwaukee M18 HCCT120-0C0 M18™ FORCE LOGIC™ 120kN Cable Crimper delivers up to 120kN of linear crimping force for copper cables from 16 to 400 mm² and aluminium cables from 16 to 300 mm². Equipped with Predictive Force Monitoring (PFM), it ensures full pressure is achieved on every crimp, indicated by a green LED. The balanced design and 340° rotating head allow easy alignment and overhead work. Compatible with the M18™ battery platform, it can perform up to 139 crimps per charge with a 5.0Ah battery.
| Model | M18 HCCT120-0C0 |
|---|---|
| Voltage | 18V |
| Output Force (kN) | 120 |
| Crimping Range (Copper) | 16-400 mm² |
| Crimping Range (Aluminium) | 16-300 mm² |
| Head Rotation | 340° |
| Full Pressure Indicator (PFM) | Yes |
| Auto Dump | Yes |
| Safety Trigger Function | No |
| Weight (tool only, no battery) (kg) | 6.9 |
| Length (mm) | 455 |
| ONE-KEY™ Enabled | Yes |
| Crimp Time (300mm² Cu/AL) | Approx. 7 seconds |
