Name: Milwaukee M12 UDEL-0B
Brand: Milwaukee
SKU: M12 UDEL-0B
Price: 1650 HKD
Availability: InStock

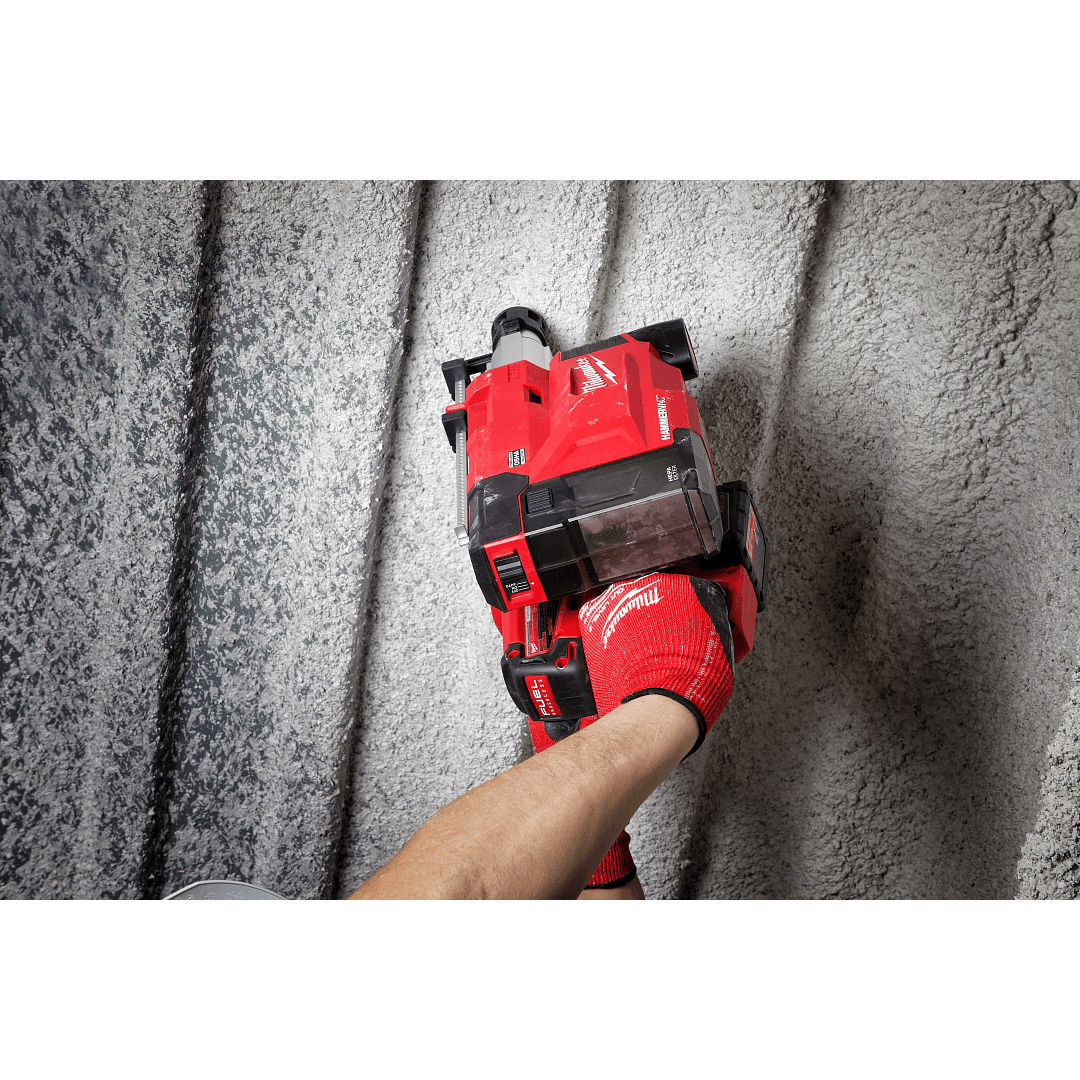

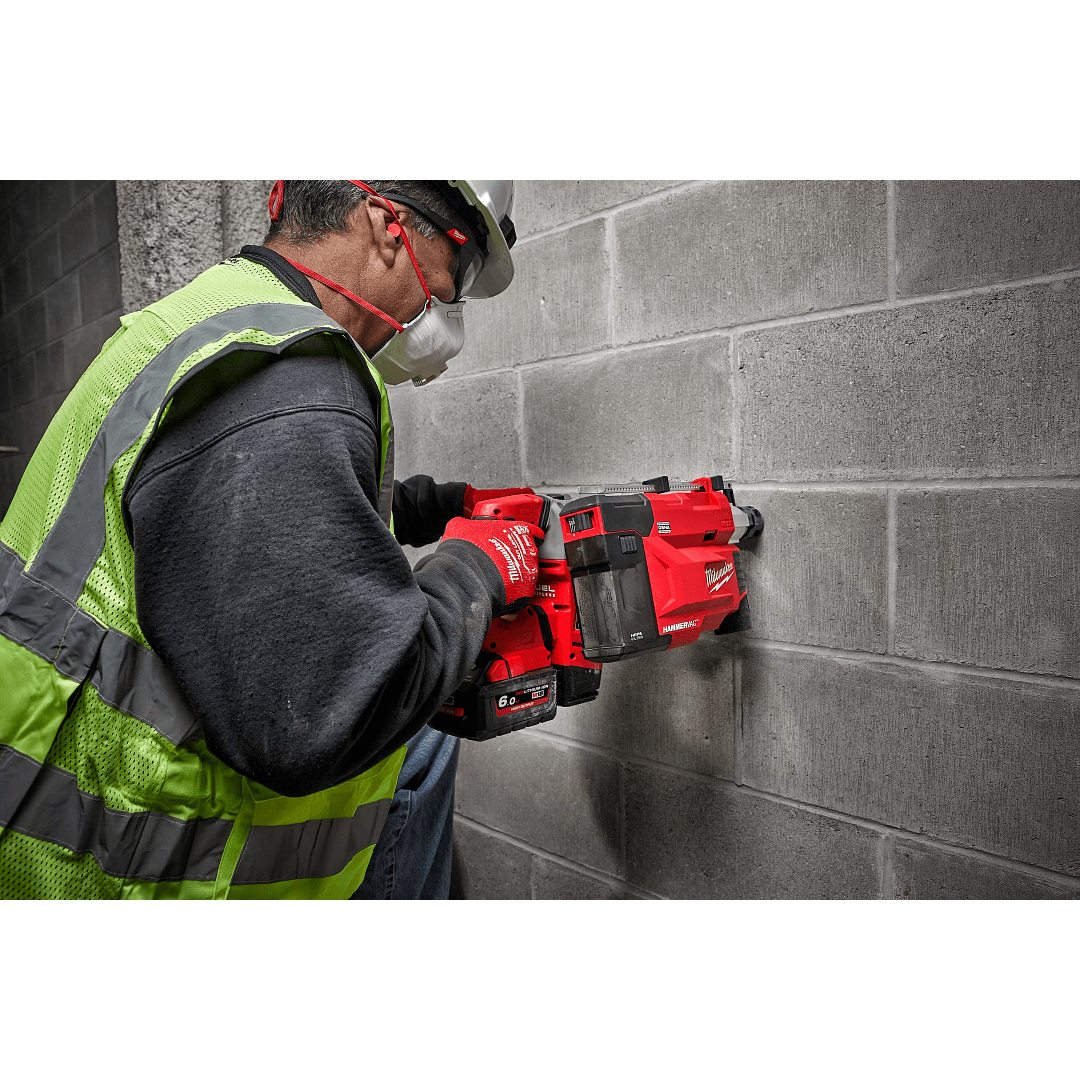

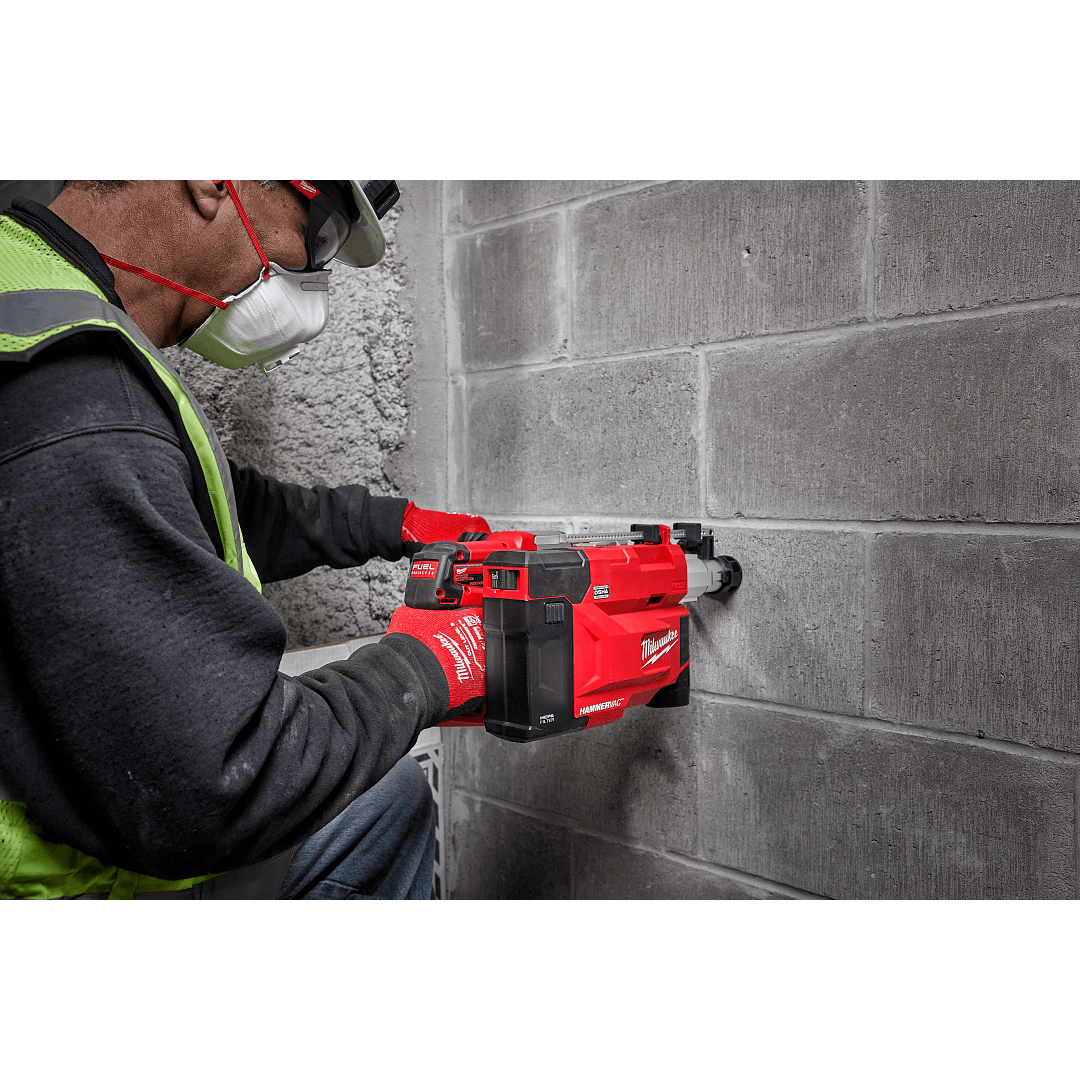

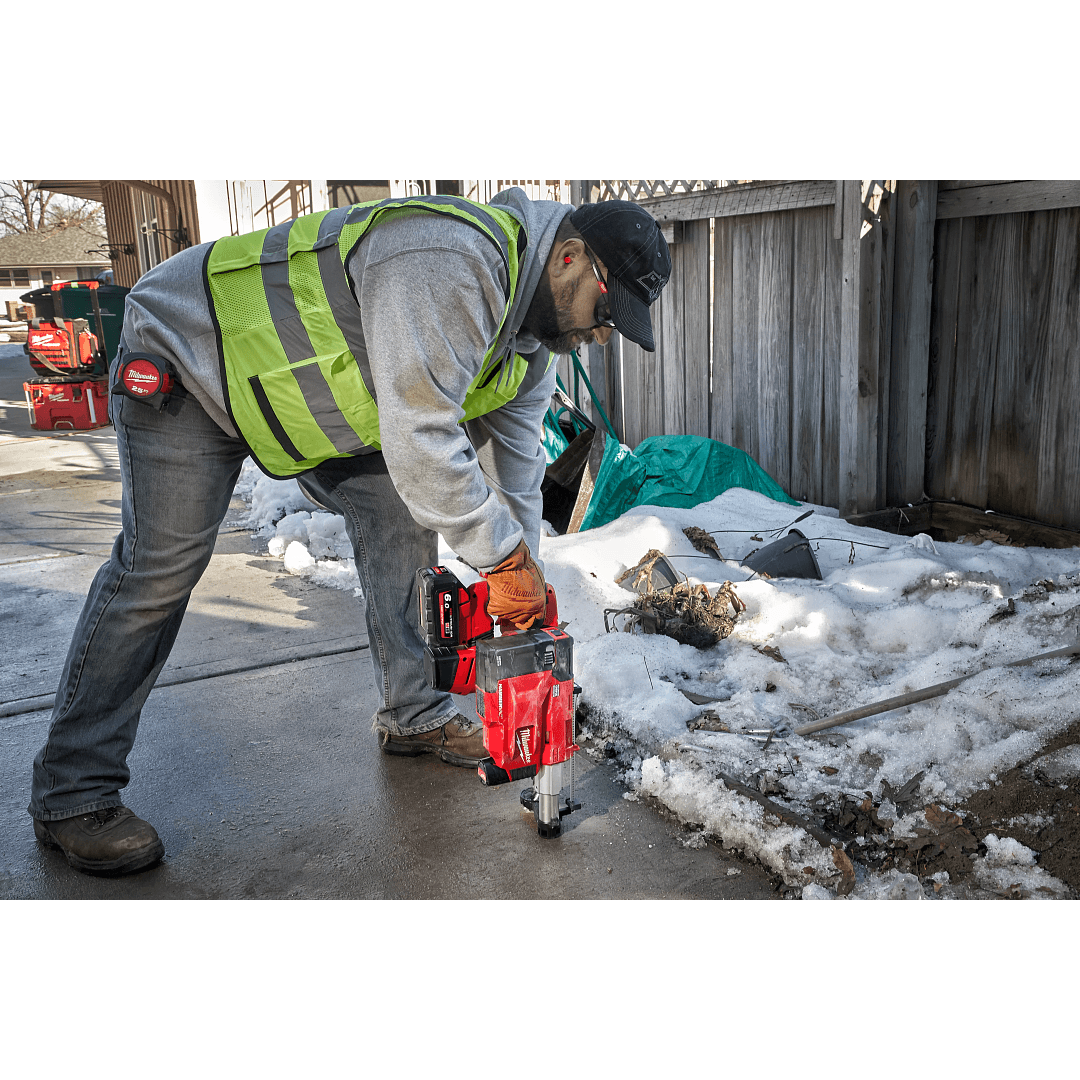

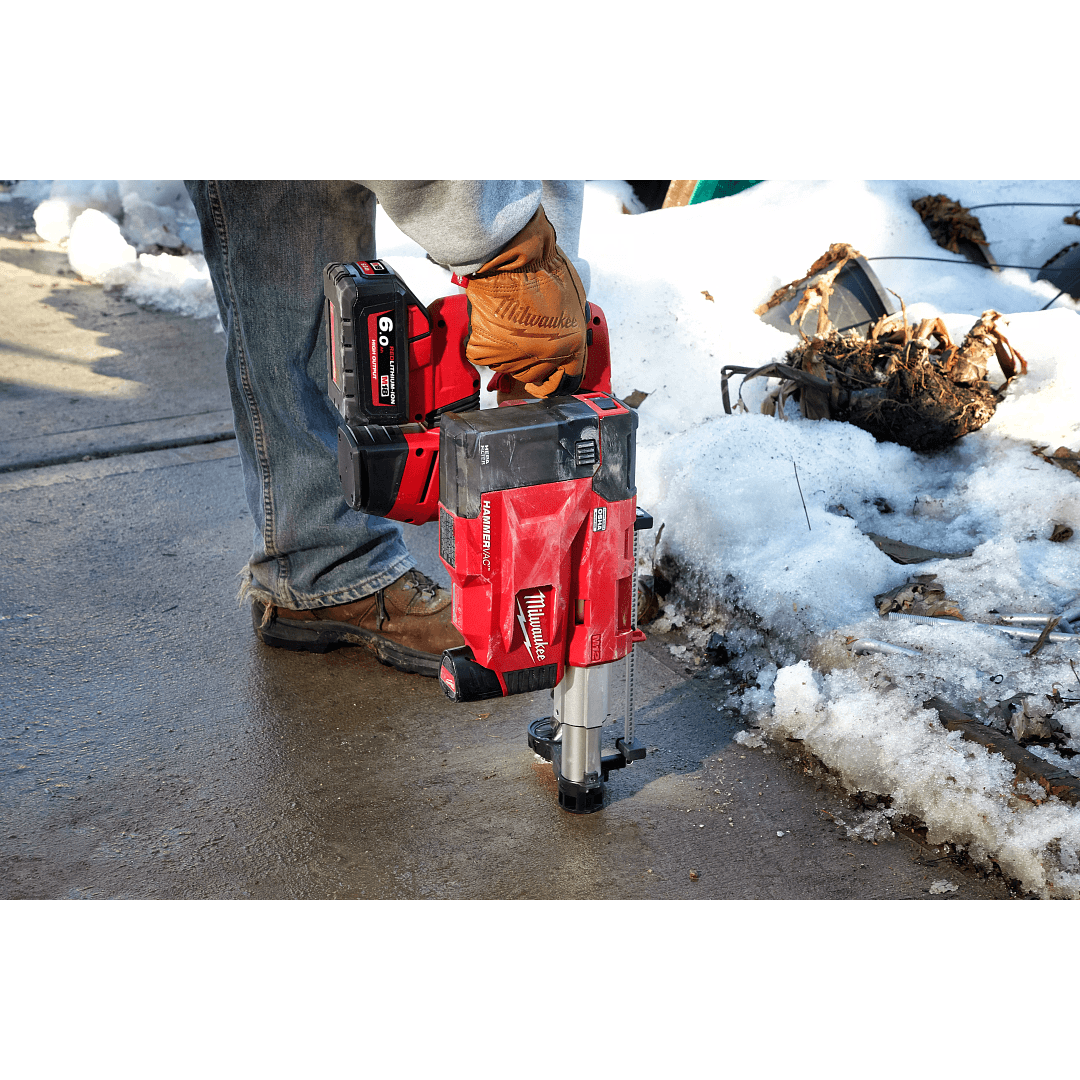

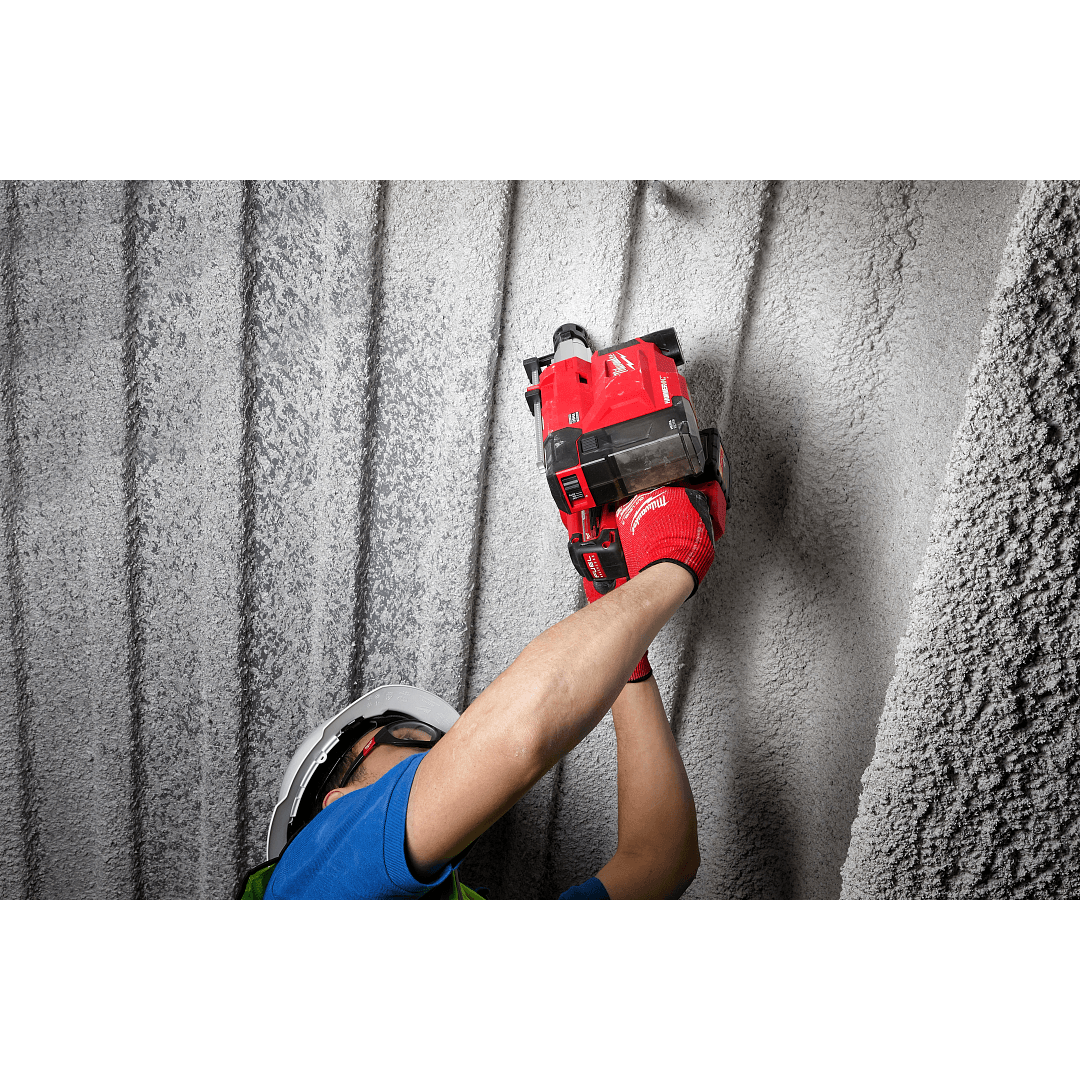

The Milwaukee M12 UDEL-0B universal dust extractor is designed for use with SDS Plus hammer drills, effectively capturing dust during drilling to maintain a clean work environment. Powered by the M12 REDLITHIUM battery platform, it offers cordless convenience and portability. Supplied with a tool bag, side handle, and two nozzles; battery and charger are not included.

Features & Benefits

Auto-start function: the extractor activates automatically when drilling begins and features a 5-second delay shut-off for a clean hole.
Universal connection system: fits all major SDS Plus hammer drills and most competitor hammers with neck sizes between 41-61 mm, using one adjustable side handle that can be mounted on the left or right.

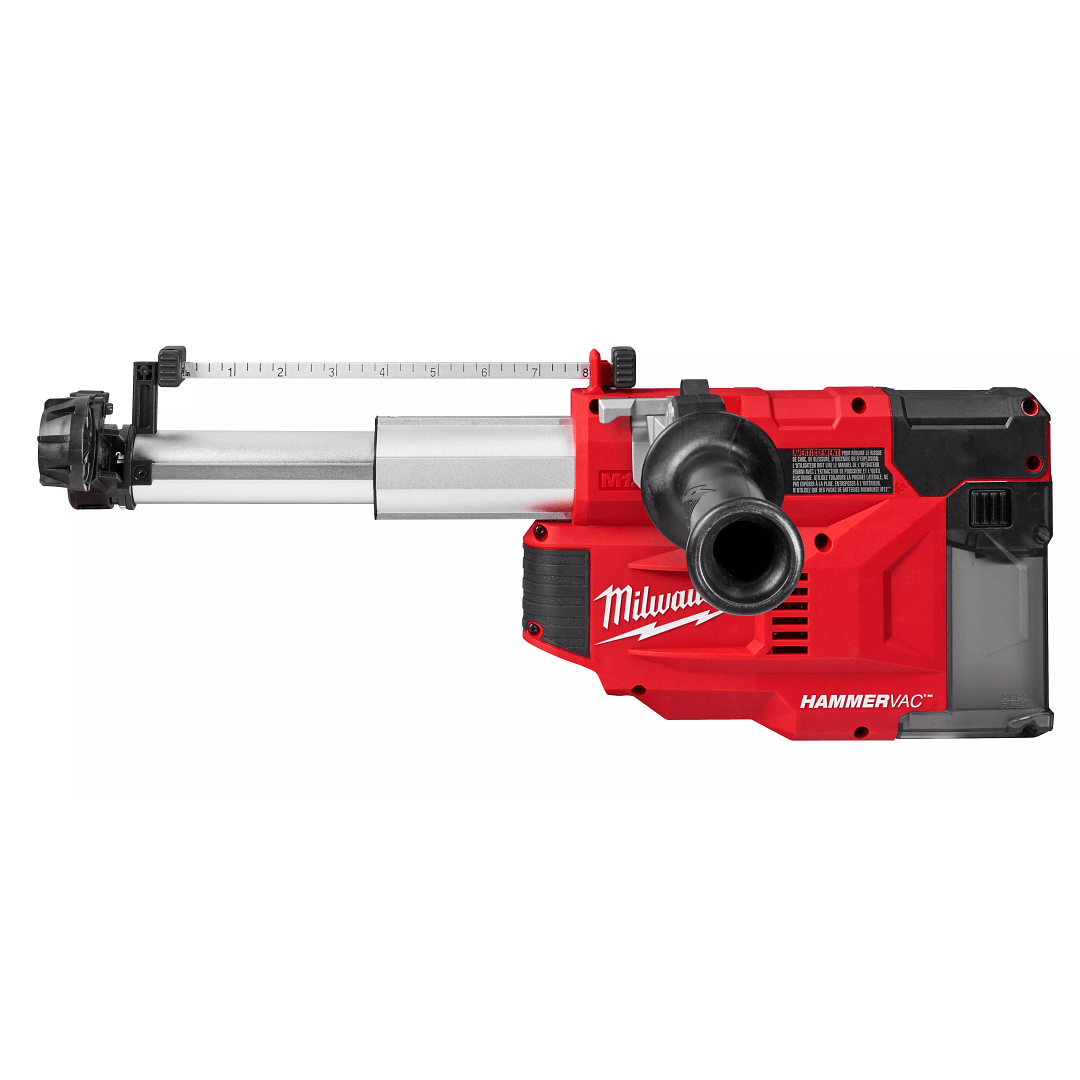

Telescopic nozzle: accommodates drill bits up to 210 mm long, with an adjustable depth gauge for precise drilling depth control.
Two interchangeable nozzles (5-16 mm and 16-30 mm diameters) with bristles to cover common drilling sizes and improve sealing.
HEPA H13 class filter: high-efficiency filtration of fine dust, plus a filter cleaning mechanism to extend service life.

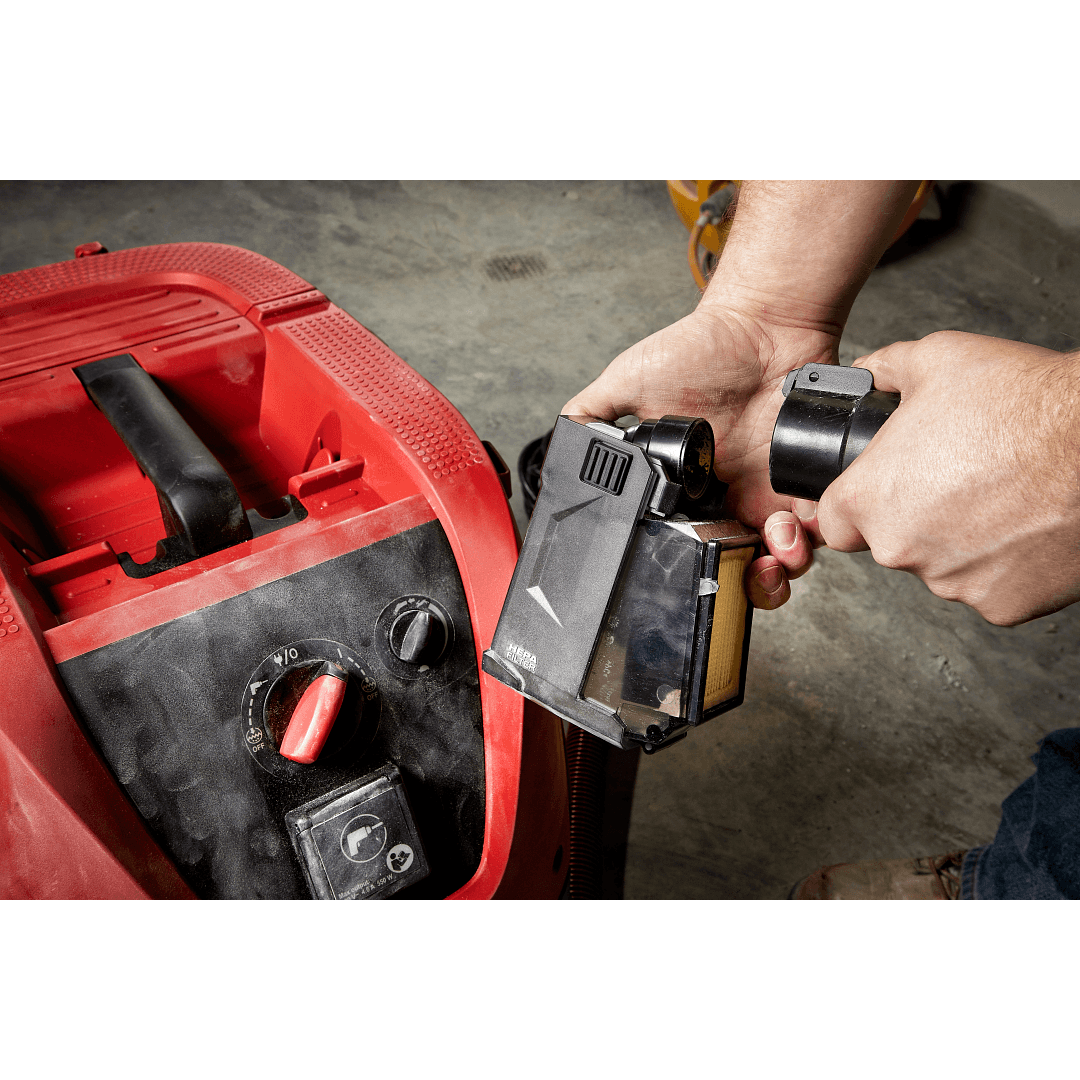

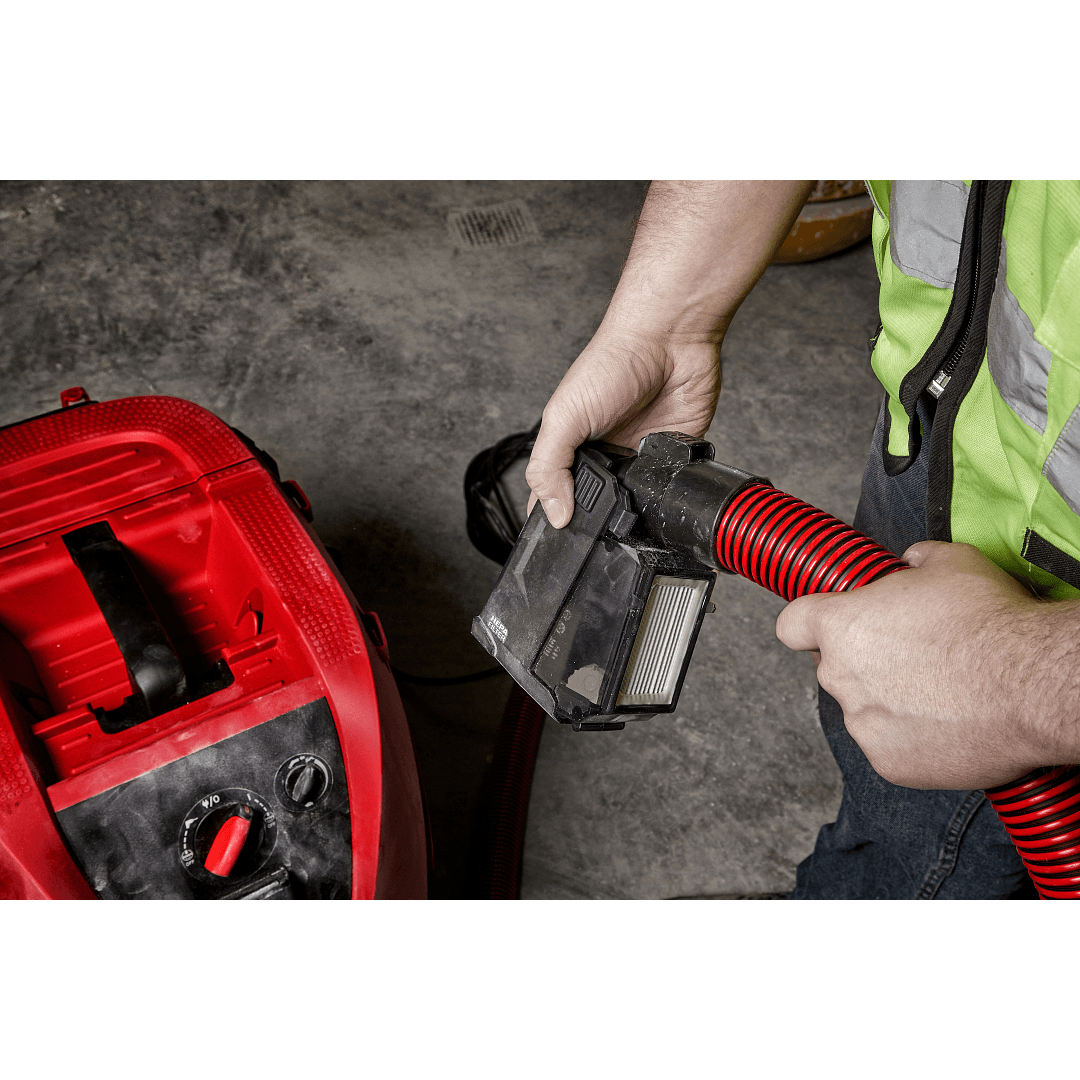

Transparent dust tank: allows easy visibility of fill level, with a 32 mm vacuum connector for dust-free emptying.
Fuel gauge: displays remaining battery charge; using a single M12 B2 2.0 Ah battery provides over 40 minutes of runtime.

Specifications

Model	M12 UDEL-0B
Battery Platform	M12™ REDLITHIUM™
Voltage (V)	12
Stroke Length (mm)	203
Max Bit Length (mm)	210
Max Drilling Depth (mm)	16 / 30
Weight with Battery (if applicable) (kg)	2.5 (M12B6)

Features & Benefits

Auto-start function: the extractor activates automatically when drilling begins and features a 5-second delay shut-off for a clean hole.
Universal connection system: fits all major SDS Plus hammer drills and most competitor hammers with neck sizes between 41-61 mm, using one adjustable side handle that can be mounted on the left or right.
Telescopic nozzle: accommodates drill bits up to 210 mm long, with an adjustable depth gauge for precise drilling depth control.
Two interchangeable nozzles (5-16 mm and 16-30 mm diameters) with bristles to cover common drilling sizes and improve sealing.
HEPA H13 class filter: high-efficiency filtration of fine dust, plus a filter cleaning mechanism to extend service life.
Transparent dust tank: allows easy visibility of fill level, with a 32 mm vacuum connector for dust-free emptying.
Fuel gauge: displays remaining battery charge; using a single M12 B2 2.0 Ah battery provides over 40 minutes of runtime.

Specifications

Model	M12 UDEL-0B
Battery Platform	M12™ REDLITHIUM™
Voltage (V)	12
Stroke Length (mm)	203
Max Bit Length (mm)	210
Max Drilling Depth (mm)	16 / 30
Weight with Battery (if applicable) (kg)	2.5 (M12B6)

JACO自營旗艦店

Milwaukee M12 UDEL-0B

JACO自營旗艦店

Reviews & Q&A

Similar products

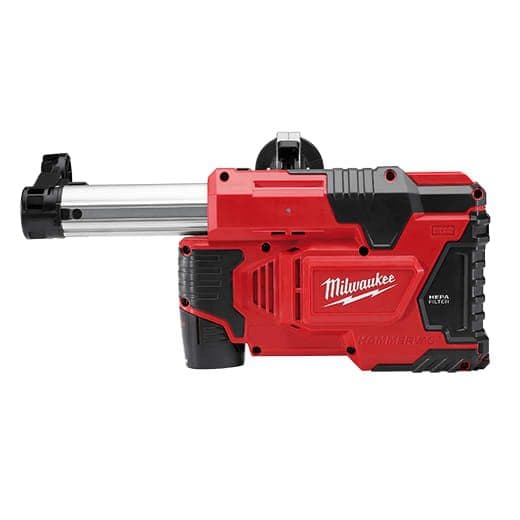

Milwaukee M12 DE-0X
