Makita TW010GZ 40V IMPACT WRENCH (BODY)

Supply status: In Stock
SKU: TW010GZ
Selected configuration: Standard item

Unit price

$7,360.00/ 件

Final pricing and available offers are confirmed at checkout

Quantity

Merchandise subtotal

$7,360.00

Free-delivery threshold reached

This line reaches the $3,000.00 threshold. Final eligibility is based on the order from the same supplier.

Formal quotation and project purchasing

Add the specified model and quantity to a quote, then coordinate volume pricing, target lead time, and project requirements with the supplier.

Sold by

JACO自營旗艦店

自營

Visit Store

01 / Product briefing

Product Description

Review the intended use, key features, and technical information supplied for this product.

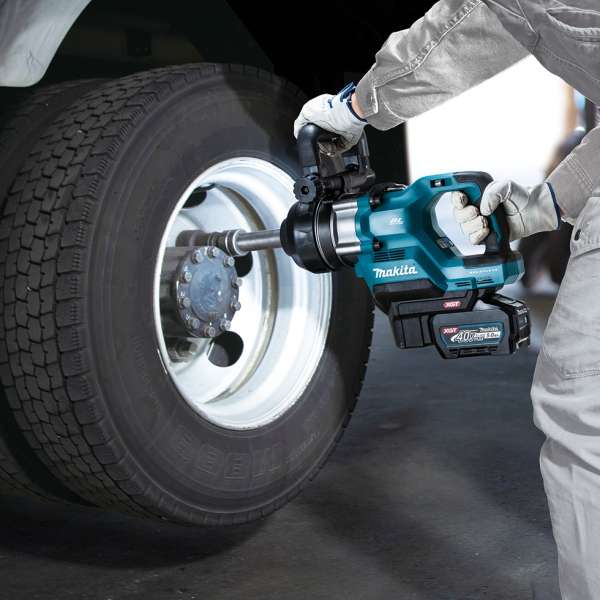

The Makita TW010GZ is a 40Vmax XGT cordless impact wrench built around a BL brushless motor with a vertical motor layout and a 25.4 mm (1") square drive. It delivers up to 3,150 N·m of maximum fastening torque and 4,000 N·m of nut-busting torque, covering M27 - M45 standard bolts and M20 - M33 high strength bolts. This model carries the long 163 mm anvil, suited to heavy vehicle wheel nuts, steel structure work and construction machinery servicing. This is the body-only version: battery, charger and case are not included.

Features and Benefits

40Vmax XGT lithium-ion platform with BL brushless motor, delivering up to 3,150 N·m (2,323 ft.lbs.) of fastening torque for large bolt work.
Long anvil design (163 mm / 6-3/8") with 25.4 mm (1") square drive for reaching recessed fasteners such as wheel nuts.
Vertical motor design shortens overall tool length and reduces startup reaction force.
Electronic 4-speed impact power selection with auto-stop in both forward and reverse rotation (3 timing settings).
Trigger supports variable speed and full-speed mode, reaching full speed with a light pull to reduce fatigue.
Two-finger trigger design for easy operation even with gloves.
Ring-style built-in LED job light minimises socket shadow for better visibility.
Side handle installs 360° tool-free, with front and rear angle adjustment.
Electric brake, reversing and anti-restart safety lock.
XPT (Extreme Protection Technology) dust and water drip resistance.
Tool hanger ring for convenient hanging on pipes or hooks.

Specifications

Model	TW010GZ
Voltage	40V
Capacity	Standard bolt: M27 - M45 (1-1/8 - 1-7/8") / High strength bolt: M20 - M33 (3/4 - 1-3/8") / Square drive: 25.4mm (1")
Anvil type	Long
Anvil length	163 mm (6-3/8")
Impacts per minute (ipm)	Max: 0 - 1,750 / Hard: 0 - 1,500 / Medium: 0 - 1,300 / Soft: 0 - 1,200
No load speed (rpm)	Max: 0 - 1,200 / Hard: 0 - 850 / Medium: 0 - 700 / Soft: 0 - 600
Max fastening torque	3,150 N·m (2,323 ft.lbs.)
Nut-busting torque	4,000 N·m (2,950 ft.lbs.)
Dimensions (LxWxH)	570 x 135 x 276 mm
Net weight (include battery)	12.0 - 12.9 kg (26.5 - 28.4 lbs.) (Using BL4040F - BL4080F Battery)
Compatible battery capacity	8.0 Ah / 5.0 Ah / 4.0 Ah
