Makita TW009GZ 40V IMPACT WRENCH (BODY)

Supply status: In Stock
SKU: TW009GZ
Selected configuration: Standard item

Unit price

$7,360.00/ 件

Final pricing and available offers are confirmed at checkout

Quantity

Merchandise subtotal

$7,360.00

Free-delivery threshold reached

This line reaches the $3,000.00 threshold. Final eligibility is based on the order from the same supplier.

Formal quotation and project purchasing

Add the specified model and quantity to a quote, then coordinate volume pricing, target lead time, and project requirements with the supplier.

Sold by

JACO自營旗艦店

自營

Visit Store

01 / Product briefing

Product Description

Review the intended use, key features, and technical information supplied for this product.

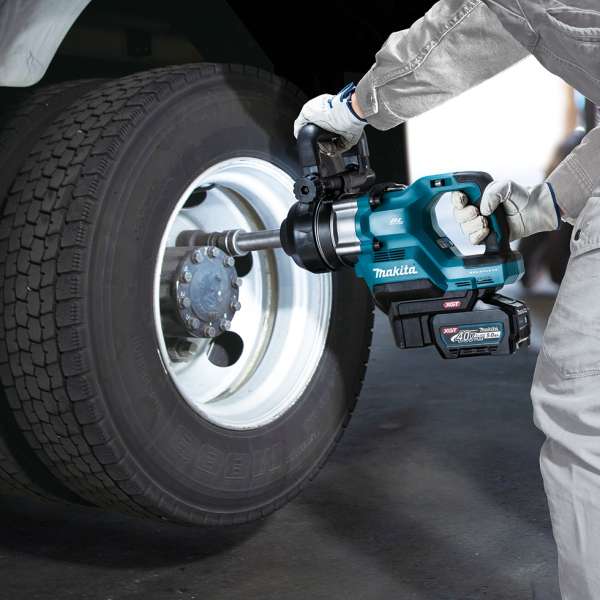

The Makita TW009GZ is a 40Vmax XGT cordless impact wrench supplied as a body-only tool. It pairs a BL brushless motor with a vertical motor layout, keeping the tool short for work in confined spaces. The 25.4 mm (1") square drive delivers up to 3,150 N·m of fastening torque and 4,000 N·m of nut-busting torque, handling M27 - M45 standard bolts. Electronic 4-speed control, auto-stop in forward and reverse, and XPT dust and drip resistance are included. Battery, charger and case are not supplied.

Features and Benefits

Powered by the 40Vmax XGT lithium-ion platform, with up to 3,150 N·m (2,323 ft.lbs.) of fastening torque for large bolt work.
TW009G uses a short anvil with a 25.4 mm (1") square drive.
Vertical motor design shortens the overall tool length and reduces start-up reaction force.
Electronic 4-speed impact power selection with auto-stop in both forward and reverse rotation (3 timing settings).
Trigger supports variable speed and a full-speed mode, reaching full speed with a light pull to reduce fatigue.

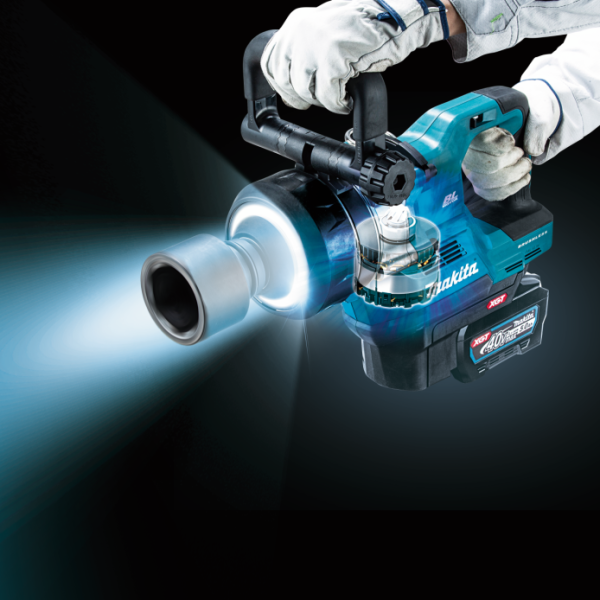

Ring-style LED job light minimises socket shadow for better visibility.
Side handle installs 360° without tools and its angle can be adjusted forward or back.
BL brushless motor with XPT dust and drip resistance.
Two-finger trigger design for easy operation with gloves on.
Tool hanger ring for hanging on pipes or hooks.
Anti-restart safety lock and electric brake.

Specifications

Model	TW009GZ
Capacity	Standard bolt: M27 - M45 (1-1/8 - 1-7/8") / High strength bolt: M20 - M33 (3/4 - 1-3/8") / Square drive: 25.4mm (1")
Anvil type	Short
Impacts per minute (ipm)	Max: 0 - 1,750 / Hard: 0 - 1,500 / Medium: 0 - 1,300 / Soft: 0 - 1,200
No load speed (rpm)	Max: 0 - 1,200 / Hard: 0 - 850 / Medium: 0 - 700 / Soft: 0 - 600
Max fastening torque	3,150 N·m (2,323 ft.lbs.)
Nut-busting torque	4,000 N·m (2,950 ft.lbs.)
Dimensions (LxWxH)	435 x 135 x 276 mm
Net weight (include battery)	11.0 - 11.9 kg (24.3 – 26.2 lbs.) (Using BL4040F - BL4080F Battery)
Voltage	40V max
Compatible battery capacity	4.0 Ah / 5.0 Ah / 8.0 Ah
