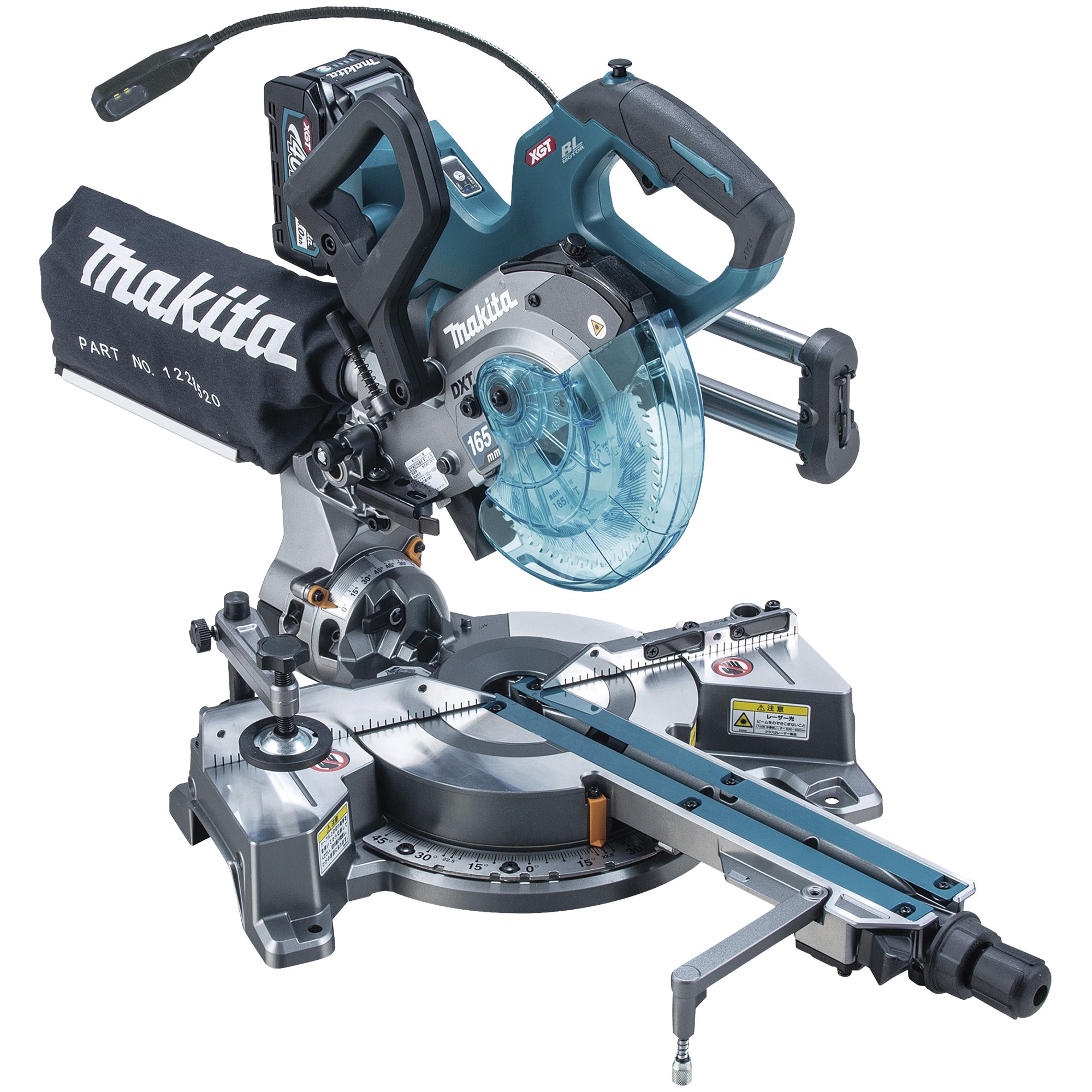

The Makita LS009GZ is a 40Vmax XGT cordless 165 mm slide compound saw (aluminium / mitre cutting saw) driven by a high-power brushless motor with a no-load speed of 4,000 rpm. With the turn base at 0° it cuts up to 312 mm wide by 51 mm high in a single pass, and the blade bevels 45° to both left and right with an additional 1° of travel. A rail-forward sliding mechanism, front-mounted locking grips and a stowable sub-table make it suited to accurate cutting of timber, aluminium profiles and interior trim. This is the body-only version: battery and charger are not included.

Makita LS009GZ 40V cordless slide compound saw cutting a timber beam

Features and Benefits

165 mm blade with a sliding mechanism cuts up to 312 mm wide x 51 mm high in one pass at 0° turn base; the right-hand slide pole keeps the cutting line clearly visible.
High-power brushless motor delivers roughly twice the cutting speed of the equivalent Makita AC model in factory testing (based on 240 mm wide x 40 mm high timber).
Constant speed control maintains stable blade speed under heavy load for a cleaner cut face.
Rigid construction: upper and lower linear ball bearings, 25 mm diameter slide poles and a ribbed high-rigidity arm improve cutting accuracy.
Rail-forward sliding design keeps the depth unchanged during operation, with a stored depth of just 639 mm so it can sit close to a wall.
Dual bevel 45° left and right, plus an extra 1° for butting skirting and other interior trim.
Front-side operation: bevel locking grip and turn base release lever are grouped at the front for quick adjustment, plus a stowable sub-table to support wide workpieces.

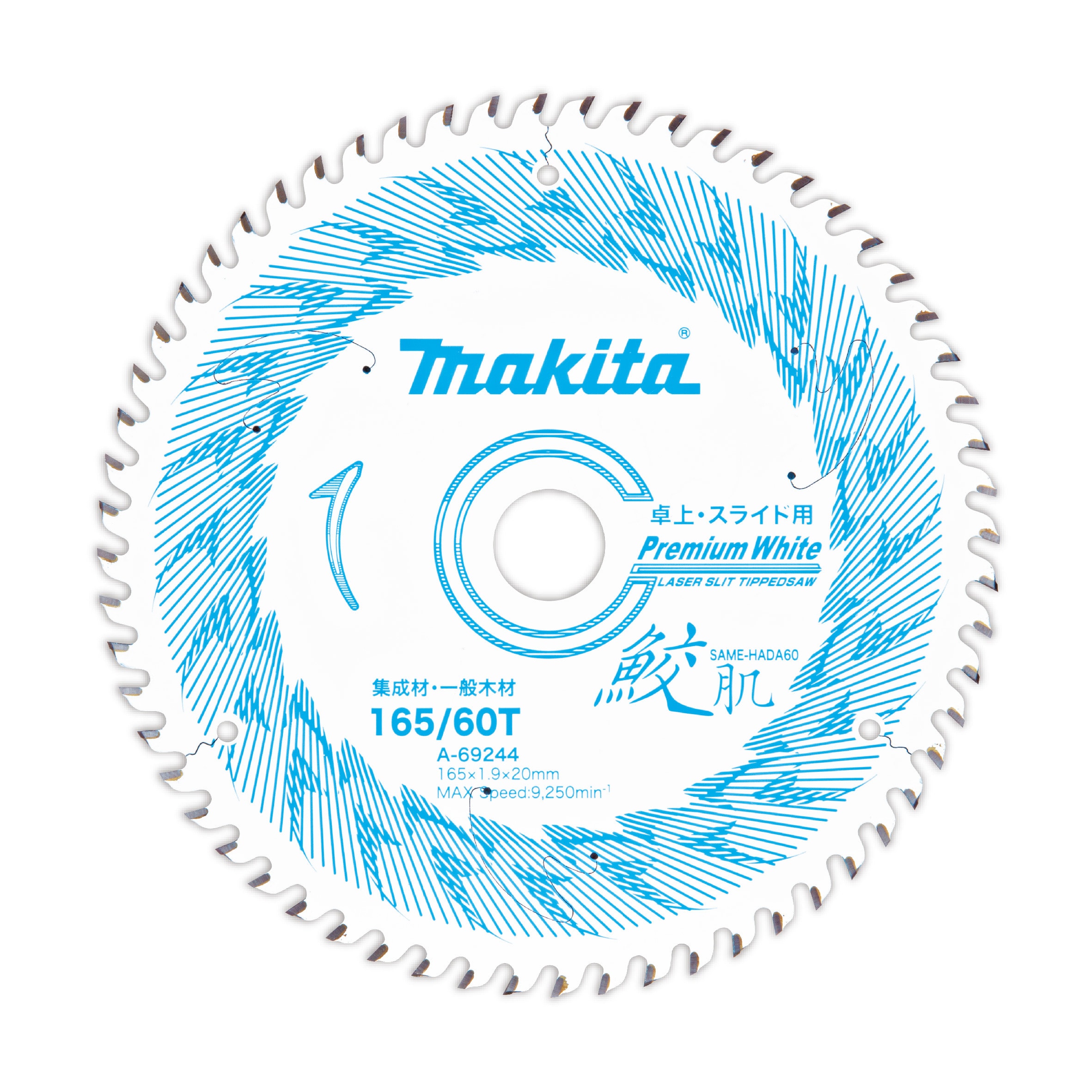

Supplied with a Samehada premium TCT blade (165 mm / 60T) that reduces friction resistance by about a quarter and increases work per charge by about 50% versus the previous Makita blade.
AWS auto-start wireless system for dust collection: switching the tool on starts the dust extractor (wireless unit sold separately); a dedicated dust button also runs extraction without spinning the blade.
Built-in laser guide and bright LED work light, plus a mini sub fence.
11.9 kg with a BL4025 battery fitted for easy transport around site.
Runs on the 40Vmax XGT battery platform, shared with XGT impact drivers, rotary hammers, circular saws, vacuums and more.

Specifications

Model	LS009GZ
Product type	Cordless slide compound saw
Power supply	DC 36V (40Vmax XGT lithium-ion platform)
Blade diameter	165 mm
Usable blade diameter	155 – 165 mm
Blade bore	20 mm
No-load speed	4,000 rpm
Max cutting capacity (blade at 0°)	Turn base 0°: 312 x 51 mm / Turn base 45° left or right: 220 x 51 mm / Turn base 57° right: 170 x 51 mm
Max cutting capacity (blade bevel 45° left)	Turn base 0°: 312 x 34 mm / Turn base 45° left or right: 220 x 34 mm
Max cutting capacity (blade bevel 45° right)	Turn base 0°: 312 x 15 mm / Turn base 45° left or right: 220 x 15 mm
Bevel range	45° left and right (plus 1°)
Dimensions (D x W x H)	639 x 418 x 486 mm
Weight	11.9 kg (with BL4025 battery)
Key functions	High-power brushless motor, AWS wireless dust collection, LED light, laser guide
Compatible batteries	BL4020 / BL4025 / BL4040 / BL4040F / BL4050F / BL4080F / BL4080H (battery sold separately)

What's in the Box

LS009GZ 40V Cordless Slide Compound Saw x1
Samehada premium TCT saw blade (bench / slide saw type) 165 mm x1
Dust bag x1
Triangular rule x1
Vertical vise x1
Hex wrench 5 mm x1
Hex wrench 2.5 mm x1
Body only: battery and charger are not included and must be purchased separately
Wireless Unit for AWS is not included and must be purchased separately

Note: the battery shown in the product photos is for illustration only and is not included.
