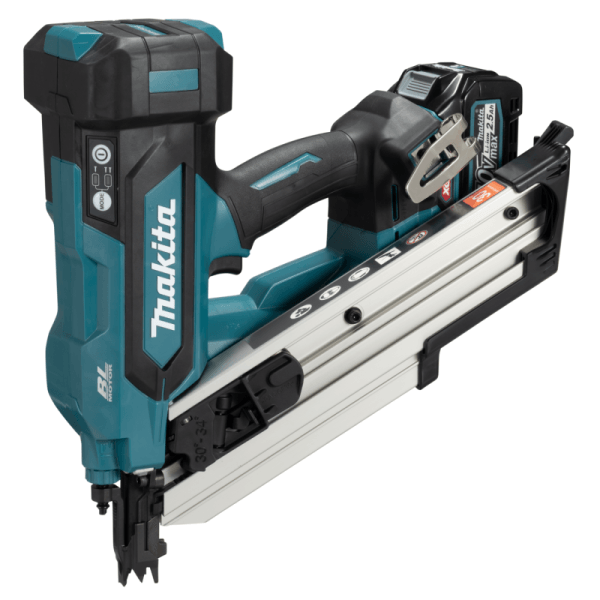

Name: Makita BN001GZ 40V FRAMING NAILER 90MM (BODY)
Brand: Makita
SKU: BN001GZ
Price: 6250 HKD
Availability: InStock

The Makita BN001GZ is a 40Vmax XGT Li-Ion brushless cordless framing nailer with a pneumatic spring drive system. It drives clipped-head collated nails from 50 to 90 mm long in 2.9 - 3.3 mm gauge, with a magazine capacity of 58 nails. Both full sequential actuation (single nailing) and contact actuation (continuous nailing) modes are selectable, with rapid firing of up to 4 nails per second using a BL4025 battery. A BL brushless motor and XPT dust and drip resistant construction suit it to framing and timber structure work. This model is the body only version: battery and charger are not included.

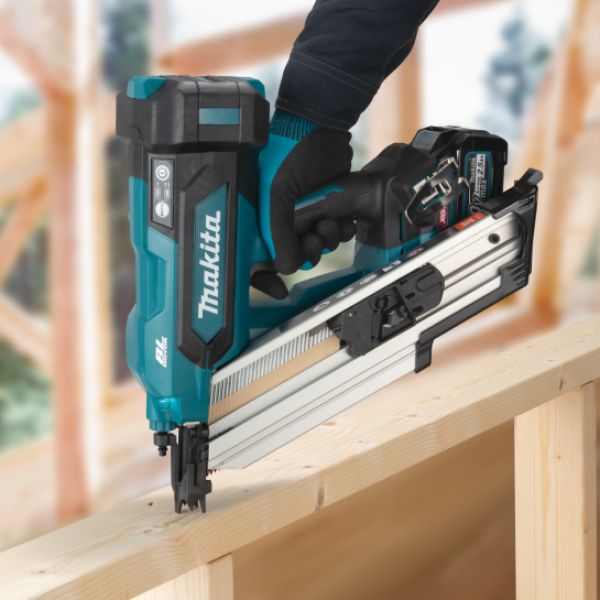

Makita BN001GZ 40V cordless framing nailer driving nails into timber on a job site

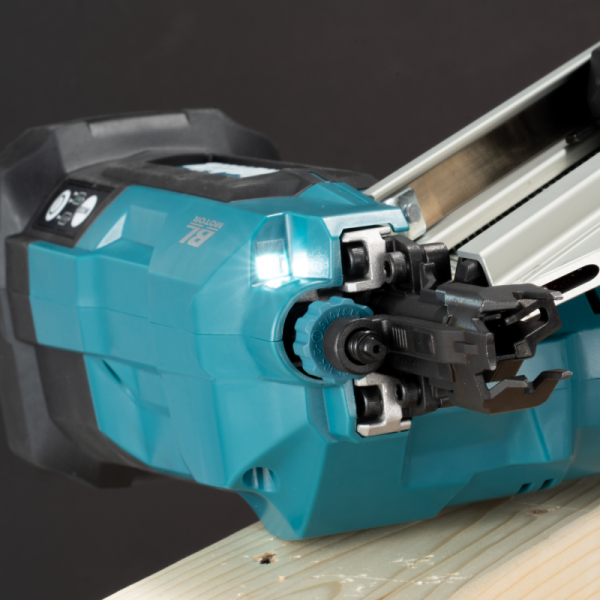

Close-up of the Makita BN001GZ LED job light and depth adjusting dial

Features and Benefits

40Vmax XGT Li-Ion brushless cordless 90 mm (3-1/2") framing nailer for clipped-head nails.
Developed from the DBN900, now with an XGT Li-Ion battery and a more powerful BL motor.
Significantly improved rapid firing capability of up to 4 nails per second (using a BL4025 battery).
Increased pneumatic spring compression speed drives nails up to 90 mm with a feel close to a pneumatic nailer.

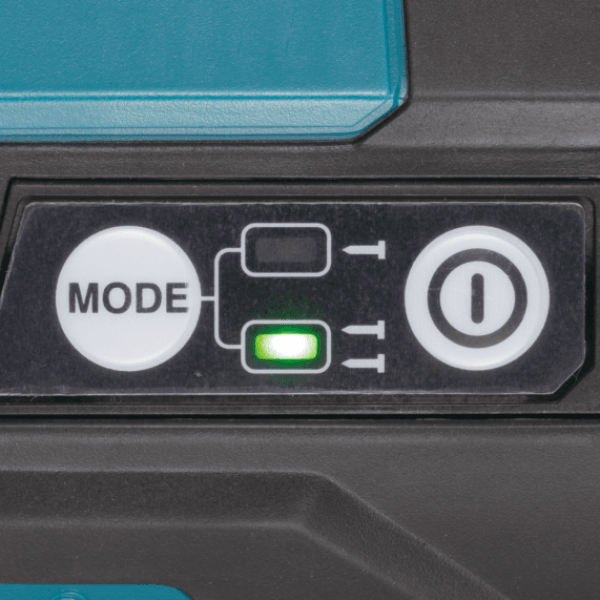

Two operation modes: full sequential actuation for single nailing and contact actuation for continuous nailing.
LED job light with preglow and afterglow functions.
Driving depth is adjustable with the dial.

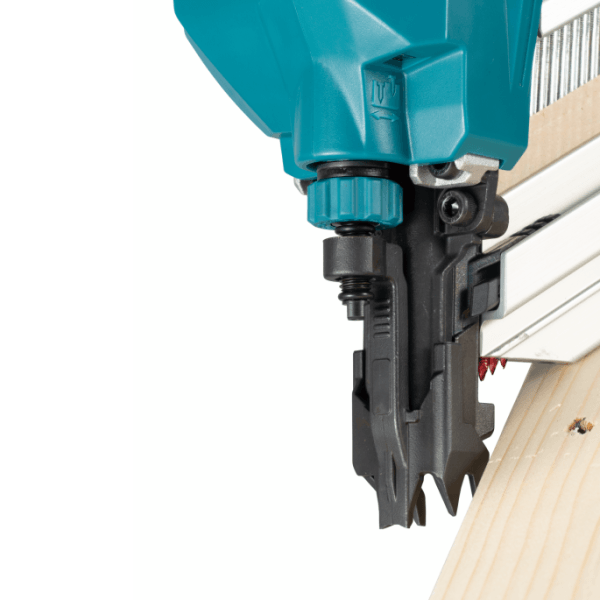

Anti-slip nose tip resists slipping when driving nails at an angle.
Window for checking the remaining nail quantity.
Anti-dry fire mechanism activates before the remaining nails reach zero, avoiding missed shots.

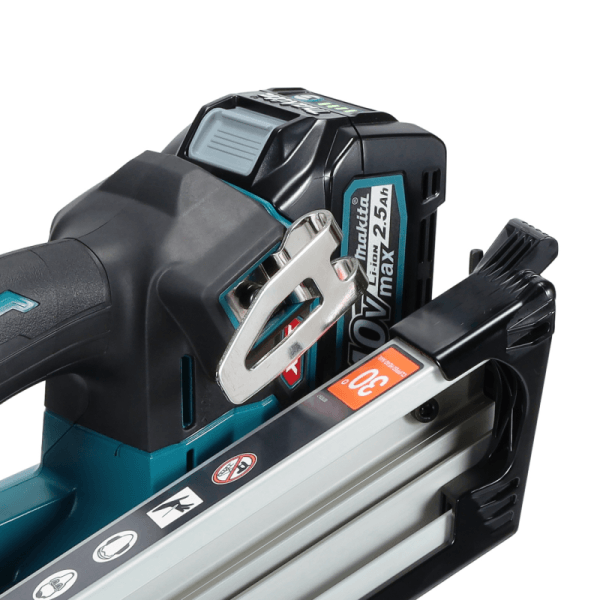

Different hooks can be fitted on the left and right sides; the rafter hook portion is 2-1/2" wide for hooking on ladders, scaffolding and 3x timbers.
Anti-restart function for safer operation.
XPT dust and drip resistant, water-resistance compatible construction.

Specifications

Model	BN001GZ
Voltage	40V
Compatible battery capacity	2.0Ah / 2.5Ah / 4.0Ah / 5.0Ah / 8.0Ah
Drive system	Pneumatic spring
Nail capacity	Length: 50 - 90 mm (2 - 3-1/2") / Gauge: 2.9 - 3.3 mm (0.113 - 0.131") / Collation angle display: 30 - 34 ° / Head shape: Clipped-head / Max magazine capacity: 58 nails
Work volume on a full battery charge	1,020 (Using BL4025 Battery)
Rapid firing capability per second	4 nails /s (Using BL4025 Battery)
Vibration level	3.6 m/s² (EN60745-2-16)
Sound pressure level	90 dB (A) (EN60745-2-16)
Dimensions (L x W x H)	326 x 186 x 358 mm / (12-7/8 x 7-3/8 x 14-1/8") / (Using BL4025 Battery)
Net weight	5.3 - 6.5 kg (11.7 - 14.3 lbs.) / (Using BL4020 - BL4080F Battery)

What's in the Box

BN001GZ Cordless Framing Nailer x1
Battery and charger not included, to be purchased separately

Note: the battery shown in the product photos is for illustration only and is not included.

No downloads available yet

Contact the supplier if you need a datasheet, certificate, or another technical document.

Reviews & Q&A

No reviews yet. Be the first to review this product.

Features and Benefits

40Vmax XGT Li-Ion brushless cordless 90 mm (3-1/2") framing nailer for clipped-head nails.
Developed from the DBN900, now with an XGT Li-Ion battery and a more powerful BL motor.
Significantly improved rapid firing capability of up to 4 nails per second (using a BL4025 battery).
Increased pneumatic spring compression speed drives nails up to 90 mm with a feel close to a pneumatic nailer.
Two operation modes: full sequential actuation for single nailing and contact actuation for continuous nailing.
LED job light with preglow and afterglow functions.
Driving depth is adjustable with the dial.
Anti-slip nose tip resists slipping when driving nails at an angle.
Window for checking the remaining nail quantity.
Anti-dry fire mechanism activates before the remaining nails reach zero, avoiding missed shots.
Different hooks can be fitted on the left and right sides; the rafter hook portion is 2-1/2" wide for hooking on ladders, scaffolding and 3x timbers.
Anti-restart function for safer operation.
XPT dust and drip resistant, water-resistance compatible construction.

Specifications

Model	BN001GZ
Voltage	40V
Compatible battery capacity	2.0Ah / 2.5Ah / 4.0Ah / 5.0Ah / 8.0Ah
Drive system	Pneumatic spring
Nail capacity	Length: 50 - 90 mm (2 - 3-1/2") / Gauge: 2.9 - 3.3 mm (0.113 - 0.131") / Collation angle display: 30 - 34 ° / Head shape: Clipped-head / Max magazine capacity: 58 nails
Work volume on a full battery charge	1,020 (Using BL4025 Battery)
Rapid firing capability per second	4 nails /s (Using BL4025 Battery)
Vibration level	3.6 m/s² (EN60745-2-16)
Sound pressure level	90 dB (A) (EN60745-2-16)
Dimensions (L x W x H)	326 x 186 x 358 mm / (12-7/8 x 7-3/8 x 14-1/8") / (Using BL4025 Battery)
Net weight	5.3 - 6.5 kg (11.7 - 14.3 lbs.) / (Using BL4020 - BL4080F Battery)

What's in the Box

BN001GZ Cordless Framing Nailer x1
Battery and charger not included, to be purchased separately

Note: the battery shown in the product photos is for illustration only and is not included.

Reviews & Q&A

No reviews yet. Be the first to review this product.

JACO自營旗艦店

Makita BN001GZ 40V FRAMING NAILER 90MM (BODY)

JACO自營旗艦店

Reviews & Q&A

Similar products

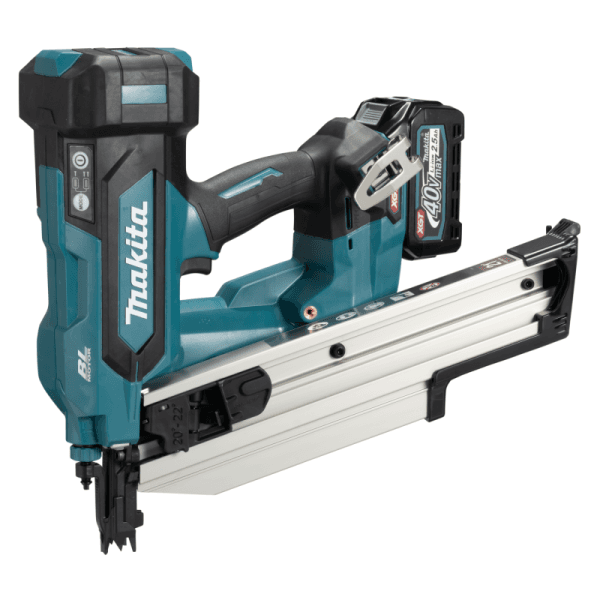

Makita BN002GZ 40V FRAMING NAILER 90MM (BODY)

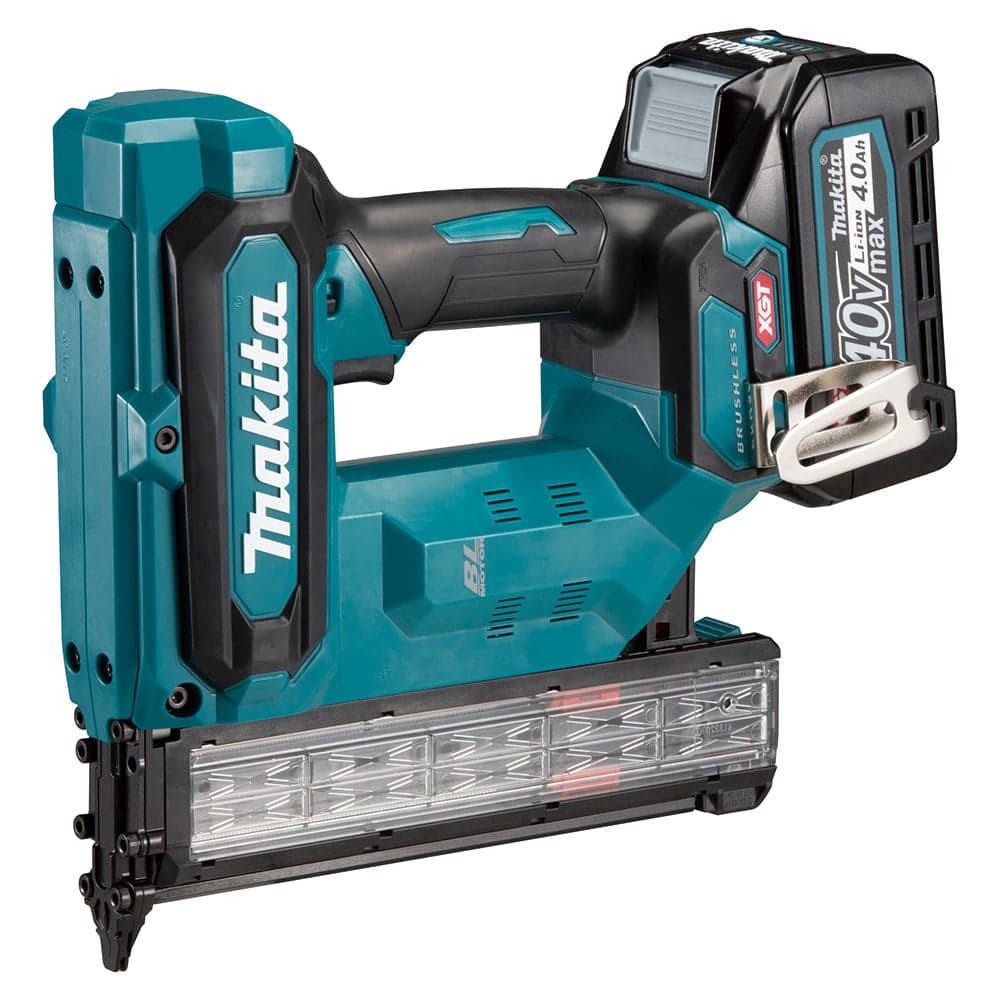

Makita FN001GZ 40V 1-9/16" (40mm) Straight Brad Nailer (Tool Only)

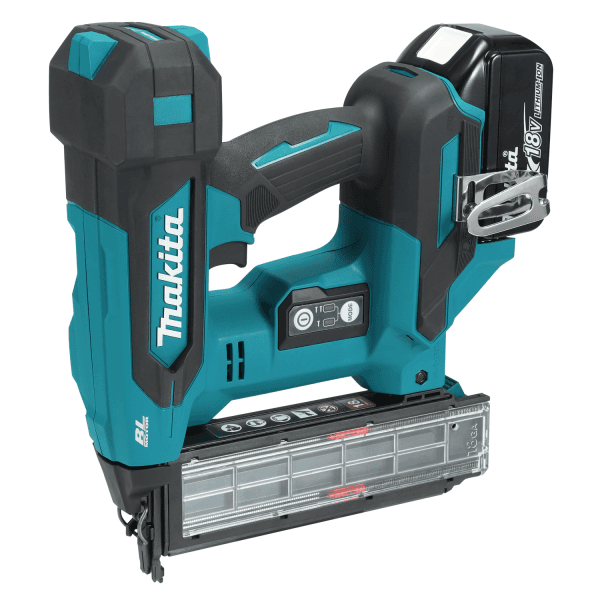

Makita DBN501Z CORDLESS BRAD NAILER 50MM (18V)

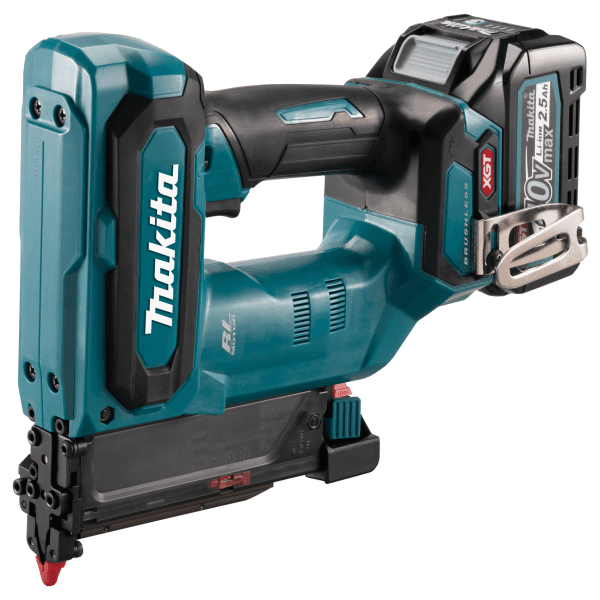

Makita PT001GZ 40V PIN NAILER (BODY)
