ASAHI TOOLS SNT Thin Double Open-End Spanner 8×9–19×21mm
手工具
$42.00–$77.00/ 枝
$71.00
No downloads available yet
Contact the supplier if you need a datasheet, certificate, or another technical document.

$81.00/ 枝-42%
Was $139.00Save $58.00
The ASAHI TOOLS FW is a double-ended flare nut wrench with slotted ring heads that fit around a pipe to engage the nut. It is suited to pipe-joint work, automotive maintenance and similar applications. This supplied range includes five metric sizes from 8×10mm to 14×17mm.

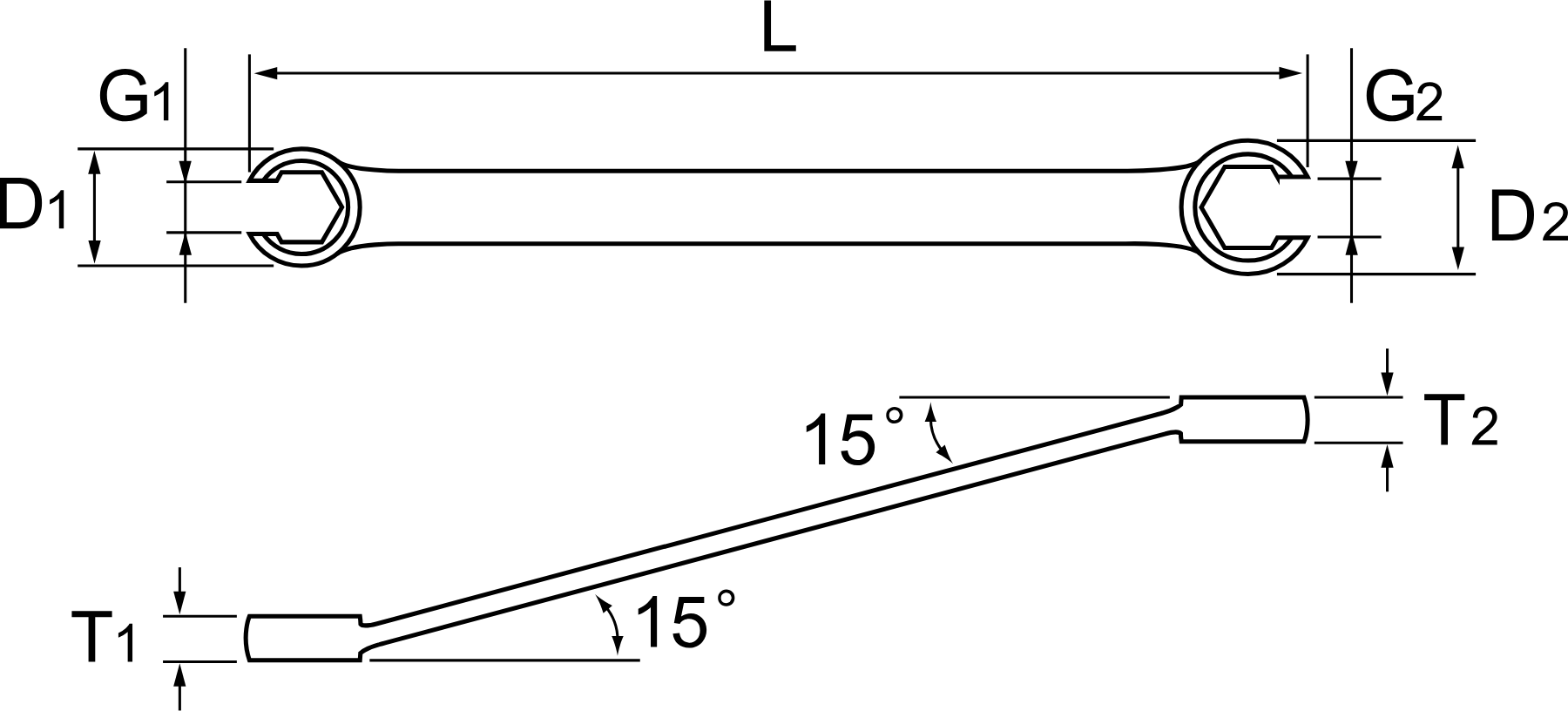

| Model | Size | D1 / D2 | G1 / G2 | T1 / T2 | Length L | Weight |
|---|---|---|---|---|---|---|
| FW0810 | 8×10mm | 20 / 22mm | 5 / 6.5mm | 8.5 / 9mm | 154mm | 68g |
| FW1012 | 10×12mm | 20 / 22mm | 6.5 / 8mm | 8.5 / 9mm | 154mm | 65g |
| FW1113 | 11×13mm | 24 / 26mm | 7.5 / 8.5mm | 10 / 11mm | 182mm | 115g |
| FW1214 | 12×14mm | 24 / 26mm | 8 / 9mm | 10 / 11mm | 182mm | 100g |
| FW1417 | 14×17mm | 28 / 30mm | 9 / 11.2mm | 11.5 / 12mm | 213mm | 155g |
